2 hb, no selector, tone/killswitch, pickups blend

[Ktulu]

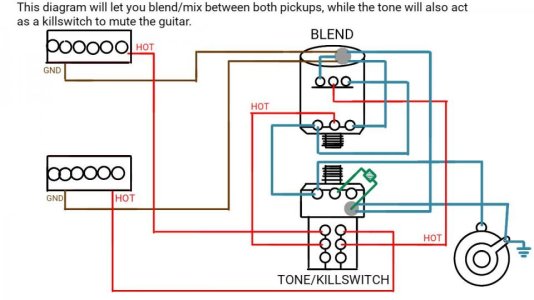

Here it is, guys, finally! Everyone walked away, scared like of the end of the world, when I asked for a little help.
But here's a big thank you to John Cooper from planetz. Forever in your debt, man!



[Jack_TriPpEr]

Re: 2 hb, no selector, tone/killswitch, pickups blend

Here it is, guys, finally! Everyone walked away, scared like of the end of the world, when I asked for a little help.
But here's a big thank you to John Cooper from planetz. Forever in your debt, man!
View attachment 101973

Please, what are the specs of the dual "blend" pot in your diagram? Is the type an actual blend pot? Does it have a center detente? Or is it dual concentric? Just dual gang? etc



[Ktulu]

Re: 2 hb, no selector, tone/killswitch, pickups blend

Yeah, it's a blend pot with a center detente. I thought that would suit it, cause it's intuitive to have a center.
Are you planning to use it aswell? There were some good reasons I needed this :laughing:
