5 way hum/single tele diagram to share

[guitar-mod]

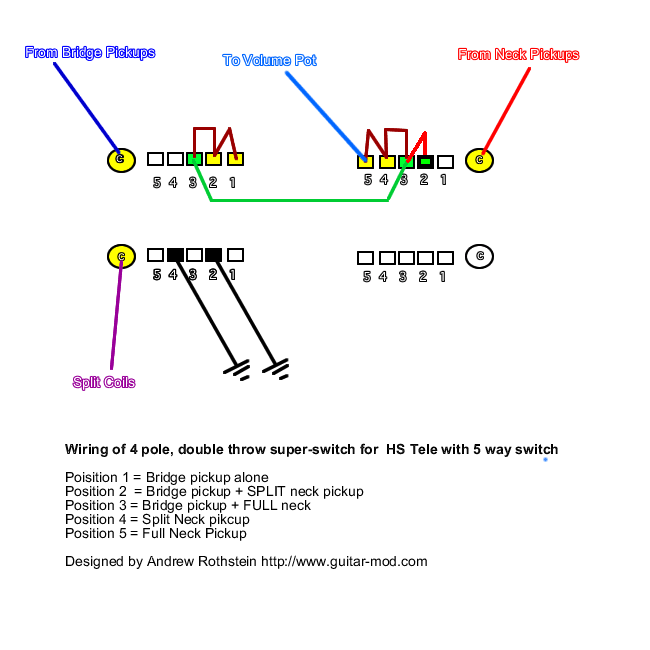

Thought I would share a diagram I used on a Hum/Single Tele recently using a 5 way super switch. It worked out pretty well. Here is the switching:

• Position 1 = Bridge pickup alone

• Position 2 = Bridge pickup and SPLIT neck pickup

• Position 3 = Bridge pickups and FULL neck pickup

• Position 4 = SPLIT neck pickup

• Position 5 = FULL neck pickup.

Thanks!

Andy
