6 way rotary diagram attached - does it work?

[gilmourfan1977]

Hi all,

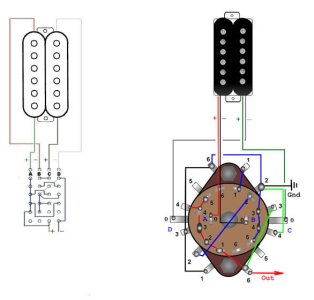

I'd like to use this 6 way rotary 4 pole diagram to get all these combination from my 4 conductor humbucker but am not sure it will work.

https://skguitar.com/SKGS/sk/Images/diagrams/six_way_rotary.htm

I'm particularly concerned that the out of phase wiring won't actually result in out of phase.

Can someone with a careful eye just glance through the connection matrix on the bottom left of this image.

Would appreciate another set of eyes.

Thanks!
Tony



[gilmourfan1977]

I think I needed to recolor the leads for the SD bucker (colors only accurate on the left image with the matrix) but I believe this combo now will work - if anyone wants to check it I'd appreciate that.



[Lucius Paisley]

Yes. It appears to have been attached to your post exactly as one assumes it would.
