I am planning on rewiring my Chapman MLB1 FF DH and as it has 3 knobs I wanted to add some more functionality to it.

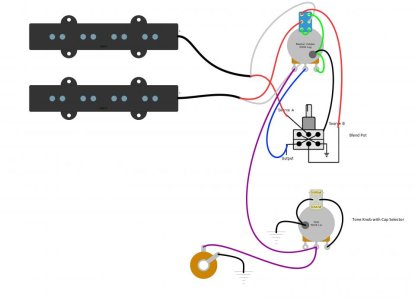

After I drew the following diagram I realized something:
If I have the blend pot and the Series/Parallel switch, will the blend pot in series mode simply work like a volume pot? (since both pickups go into Source A)
Or does the whole diagram not work?
Can anyone please confirm this?
After I drew the following diagram I realized something:
If I have the blend pot and the Series/Parallel switch, will the blend pot in series mode simply work like a volume pot? (since both pickups go into Source A)
Or does the whole diagram not work?
Can anyone please confirm this?
