Benedetto B6 !

[fede]

Hi

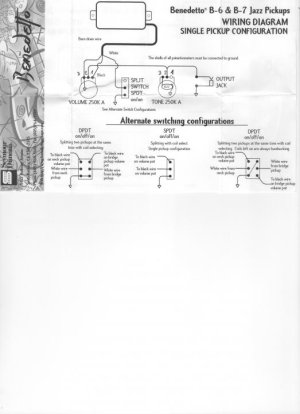

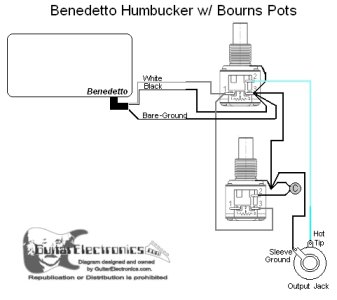

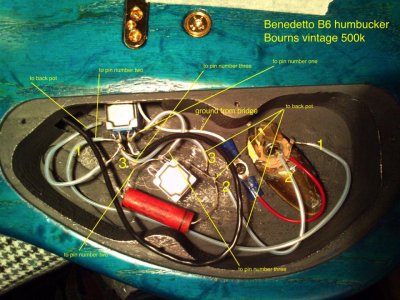

Here this simple diagram: Benedetto B6 humbucker, 1 volume,1 tone, Bourns vintage pots, I'd like hum cancelling, full power. Nothing else....Seymour tech told me that there is not a wiring diagram. The wiring inside the box has a switch and I don't know the standard pot-Bourns conversion, so I can't understand where I have solder.....:scratchch I have no switch on my wiring as well. Guitarelectronics.com sent to me a clear diagram but....it doesn't work. My guitar has a very weak sound and it sounds rolling down the volume. I soldered white wiring pick up on pin 1 and bare black pick up togheter on pin 3 :banghead:



[allstarrme]

Re: Benedetto B6 !

To me the white looks like a coil tap, tape it off. put the black where you have the white, leave the ground where it is.



[jtougas]

Re: Benedetto B6 !

I don't think so.

The shield is a separate lead, and the black and white are the hot and ground leads.

Solder one of them to ground with the shield, and wire the other lead to the first lug on the volume pot.

Proceed as instructed by the guitar electronics schematic.



[fede]

Re: Benedetto B6 !

Here the Duncan tech words about 4 wiring Duncan diagram (not 3 as benedetto) :

Hi Frederico,
Unfortunately, we don't have the exact schematic you need. However, you can just take the diagram you found and do this-
Disregard the red and white wires on the diagram. The black pickup wire in the diagram will be the white wire on the Benedetto. Your bare wire is the ground, which will be the green and bare on the diagram. Good luck!

Ok bare and green on Duncan diagram are the bare
black on Duncan diagram is the white
and the black on benedetto? is missing ..

http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=1hum_1vol_1tone



[fede]

Re: Benedetto B6 !

I don't think so.

The shield is a separate lead, and the black and white are the hot and ground leads.

Solder one of them to ground with the shield, and wire the other lead to the first lug on the volume pot.

Proceed as instructed by the guitar electronics schematic.

Here the Duncan tech words about 4 wiring Duncan diagram (not 3 as benedetto) :

Hi Frederico,
Unfortunately, we don't have the exact schematic you need. However, you can just take the diagram you found and do this-
Disregard the red and white wires on the diagram. The black pickup wire in the diagram will be the white wire on the Benedetto. Your bare wire is the ground, which will be the green and bare on the diagram. Good luck!

Ok bare and green on Duncan diagram are the bare
black on Duncan diagram is the white
and the black on benedetto? is missing ..

http://www.seymourduncan.com/support...hum_1vol_1tone



[Chocklit_Thunda]

Re: Benedetto B6 !

No then the black on the Benedetto should be green and grounded along with the bare wire



[fede]

Re: Benedetto B6 !

benedetto black and bare together on the back pot you mean ? I also want understand if guitarelectronic diagram is correct because i want my money back.



[fede]

Re: Benedetto B6 !

ok jtougas I'll try ...
so example : black and bare to ground and white to the first lug
or .............. white and bare to ground and black to the first lug
you mean ?



[Chocklit_Thunda]

Re: Benedetto B6 !

That wiring diagram is all Greek to me... The 3rd image you posted is a correct diagram. The switch acts as a on off switch. It also seems to be switching the ground wires instead of the hot wires.... Or I'm reading wrong.

For this I'd just go with a single humbucker wiring diagram (don't look for Benedetto wiring specifically.) go onto the SD website and look at their single humbucker wiring. I'd ground the black and bare wires and then send the white to the volume pot and tone and then the tip of the output jack. No switch or anything



[Chocklit_Thunda]

Re: Benedetto B6 !

ok jtougas I'll try ...
so example : black and bare to ground and white to the first lug
or .............. white and bare to ground and black to the first lug
you mean ?

This won't make a difference if you're just using one humbucker.
You only need the correct phasing if you're using 2 pickups



[fede]

Re: Benedetto B6 !

THANKS TO ALL !

TECHNICIAN , now the guitar is ok
