P pluck New member Nov 14, 2025 #1 Seems simple..I could probably experiment and stumble upon the correct way to wire a two humbucker, single 3 way LP styled switch with two volume pots and no tone....Anyone know of such a wiring diagram?
Seems simple..I could probably experiment and stumble upon the correct way to wire a two humbucker, single 3 way LP styled switch with two volume pots and no tone....Anyone know of such a wiring diagram?

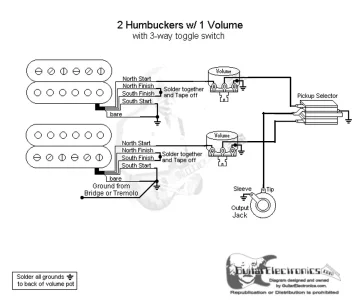

idsnowdog Imperator of Indignation Nov 14, 2025 #2 This will work. Attachments wd2hh3t10_00__38554.webp 64.7 KB · Views: 13
Artie Peaveyologist Nov 15, 2025 #3 Duncan has this in their wiring "resources" section. 2H-2V Reverse the connections to the left two terminals of each pot for "independent" volumes.
Duncan has this in their wiring "resources" section. 2H-2V Reverse the connections to the left two terminals of each pot for "independent" volumes.
P pluck New member Nov 15, 2025 #4 idsnowdog said: This will work. Click to expand... brilliant. thanks!
