Custom Guitar special wiring diagram (needs verification).

KnifeR

KnifeR

New member
Hi, new here,
sorry for my english (It is not my native language).
I need a help with verification of my new wiring diagram for my custom built guitar,
I know that You guys are fully capable of helping me with checking this out.

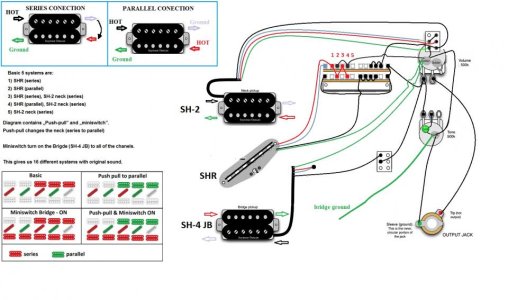

Enclosing my diagram here:


direct link
http://imageshack.us/a/img856/6726/rrcustom.png

thanks for help
Peter

Last edited:
Re: Custom Guitar special wiring diagram (needs verification).

First thing it took my attention is how did you assigned wires.
Red & green are always for the screw coil, while white and black ar for slug coil.
But, the diagram seems ok to me.

Re: Custom Guitar special wiring diagram (needs verification).

Unfortunatelly
You are wrong about the colors of the wires (cables) - please look at the pickup color definition on the SD website.
regards

PS: thanks for first comment on my first Thread

Re: Custom Guitar special wiring diagram (needs verification).

this will come in handy for my neice & I are going to try to build an electric...I like fender body she likes gibson...I'm new to it all and the seymour duncan pickup would be a prize to win for sure..good luck with yours!

Re: Custom Guitar special wiring diagram (needs verification).

KnifeR said:
Unfortunatelly
You are wrong about the colors of the wires (cables) - please look at the pickup color definition on the SD website.
regards

PS: thanks for first comment on my first Thread
Click to expand...

Unfortunatelly, it's you who is wrong, mate.

Look at the picture with attention http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=color_codes"]http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=color_codes[/URL]

North coil is SLUG coil. North start = black, North finish = white
South coil is SCREW coil. South start = green, South finish = red

More than 5 years designing diagrams for forum mates, mostly SD pickups involved.
Probably, the only think that I have clear is just that.

Enjoy your diagram

Re: Custom Guitar special wiring diagram (needs verification).

Sorry,
I didn't understand really what You mean about screw and slug.
Now it is clear! thanks
but what You assume with the assigning the wires, where You think it looks wird??
thanks for Your answer :)

southiee
If You need some help with fenders and gibsons wiring :) just write me ;)

Re: Custom Guitar special wiring diagram (needs verification).

As I said, even that the wire colors were assigned to the wrong coil in your diagram, this doesn't affects the design so, it should work as expected.

Re: Custom Guitar special wiring diagram (needs verification).

and how do you think hemetico - will you like to add new push pull to make parallel brigde swich :D
im considering the sound of trinity parallel and of brigde and neck parallel

Re: Custom Guitar special wiring diagram (needs verification).

KnifeR said:
and how do you think hemetico - will you like to add new push pull to make parallel brigde swich :D
im considering the sound of trinity parallel and of brigde and neck parallel
Click to expand...
JB it's a bit piercing by itself. Parallel enhances highs and rolls off lows so, I wonder if that would be too much for that JB.
JB splits really good, instead. Maybe, I would go for coil split.

Re: Custom Guitar special wiring diagram (needs verification).

but split is always really Hi humm 2humbuckers and one spilted Humbucker (so single) = incredible hum (how do you think)
