I would like to wire my guitar with a concept inspired from Brian Mays red special. but this would be for a guitar with 2 humbuckers. I was Hoping people at the forum could create a diagram for me.

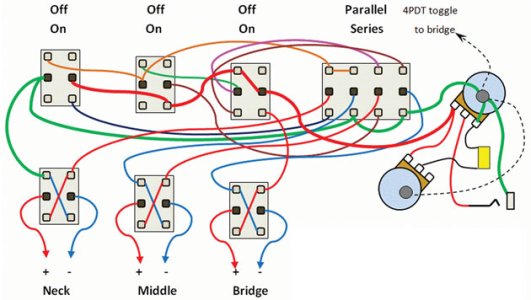

Below is the concept & the diagram from which the concept came about.
My concept
2 humbuckers
No pickup selector
2 humbuckers each coil treated separately.
4 total coils. 1 on/off per coil so 4 on off switches. (on off switch will decide which coils are active.
4 Phase switches one for each coil. only works when 2 or more coils are selected.
Master Series parallel switch only works if 2 or more coils are selected.(whatever coils are selected this switch would decide whether the selected coils will run in series or in parallel.
2 volume- Seymour Duncan liberator
1 master tone - push push bypass. Bridge pickup Bypasses everything & hits the jack.
