Determine Model on "old" SD pickup without a model sticker

[GreatOz]

Good day, how do you determine an SD pickup without the model attached on the sticker/label?

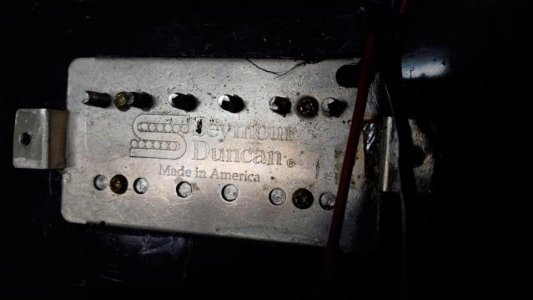

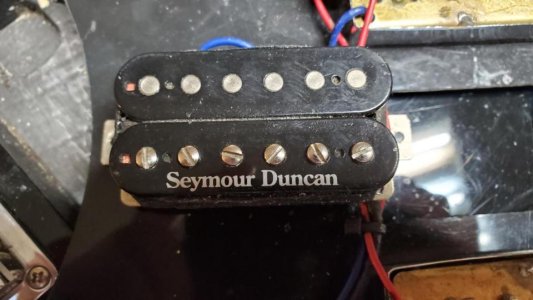

Some details I do have. It has a logo on the back and on the front, a 2-Conductor wire wrapped in black with green/black as the smaller wires.

Attached are a few pictures, but I do not see how they would be helpful.

The only thing I can think of to even remotely determine it is by measuring its DCR.



[Demanic]

Re: Determine Model on "old" SD pickup without a model sticker

Dcr would certainly help.

Sent from my Alcatel_5044C using Tapatalk



[GreatOz]

Re: Determine Model on "old" SD pickup without a model sticker

I was also wrong about its wiring; it is a 4-Conductor. How do you measure DCR on 4-Conductor? It has Black, Red, Green, and White.



[Clint 55]

Re: Determine Model on "old" SD pickup without a model sticker

Dcr and listen to it.



[Mincer]

Re: Determine Model on "old" SD pickup without a model sticker

Connect red & white, and measure from black to green.



[AlexR]

Re: Determine Model on "old" SD pickup without a model sticker

The most useful thing for DCR is what you want from it......a chance to determine the model.

Typically DCR changes with temp too, and indeed even the heat from your hand can make the readings change as you look. So the reading at 21 centigrade is typically the 'nominal DCR' you will find on the website



[hamerfan]

Re: Determine Model on "old" SD pickup without a model sticker

We can see the copper wire thru the window. Since it a brite penny wire also called SPN, single poly nylon, we can rule out all PE, plain enamel, wire pickups like 59, Pearly Gates and APH.



[Newcenstein]

Re: Determine Model on "old" SD pickup without a model sticker

Lick the bobbins. If it tastes like strawberries, it's got a ceramic magnet. If it tastes like bananas, it has an Alnico magnet.



[hamerfan]

Re: Determine Model on "old" SD pickup without a model sticker

Lick the bobbins. If it tastes like strawberries, it's got a ceramic magnet. If it tastes like bananas, it has an Alnico magnet.

Don't trust him - he is just kidding.
In fact its salted caramel and high protein cookie dough.
