Diagram Help Please, H/S-3way Blade-1 Vol.

2

2manyguitars

New member
Hi, I feel kind of dumb for even asking because its such a simple thing but for some reason I can't find a diagram for a H/S, one volume, & 3 way blade switch setup??? The closest thing I found was a S/S, one Vol., & a 3way which should have worked but it doesn't look right to me??? There's something funky with it??? I'm not even 100% sure I'll need it but if I don't have one I definitely will because that's just how stuff works in my life! So if anyone can help point me in the right direction I would be eternally grateful!!!

Thanks for reading...

Re: Diagram Help Please, H/S-3way Blade-1 Vol.

If this is the one you were looking at it should work.

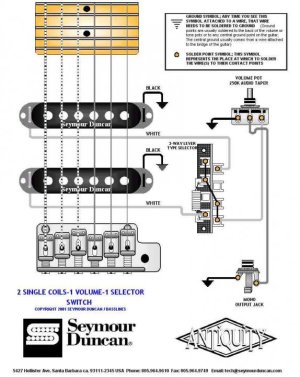

If you go by the diagram below, the top wire goes to the switch, the middle two are soldered together and taped off, and the bottom one is grounded to the back of the volume pot. If, after you wire it all up the middle position on the switch sounds thin and nasal it's out of phase and switch the two wires on the single coil

Last edited:
