Does this diagram produce these results?
- Thread starter Rick
- Start date
F
Funkfingers
Guest
Re: Does this diagram produce these results?
I'm not happy about the two auto coil split wires meeting at the wiper/collector terminal on the upper pole of the selector switch.
If we call the wiper terminal #1, I would want the split cable from the bridge pickup at terminal #2 and the split cable from the neck pickup at terminal #4. The coil split ground cable would work equally well at terminal #1 or 3.
I'm not happy about the two auto coil split wires meeting at the wiper/collector terminal on the upper pole of the selector switch.
If we call the wiper terminal #1, I would want the split cable from the bridge pickup at terminal #2 and the split cable from the neck pickup at terminal #4. The coil split ground cable would work equally well at terminal #1 or 3.
Last edited:
F
Funkfingers
Guest
Re: Does this diagram produce these results?
If the two series links are, themselves, linked, one coil from each hum-cancelling pickup will be always be operational whenever either of them is selected via the lever switch.
In simple terms, three coils will be contributing to the overall output.
If the two series links are, themselves, linked, one coil from each hum-cancelling pickup will be always be operational whenever either of them is selected via the lever switch.
In simple terms, three coils will be contributing to the overall output.
Re: Does this diagram produce these results?
I understand this part and can visualize it...
But I don't follow along exactly on this part.
ehdwuld
A Ficus

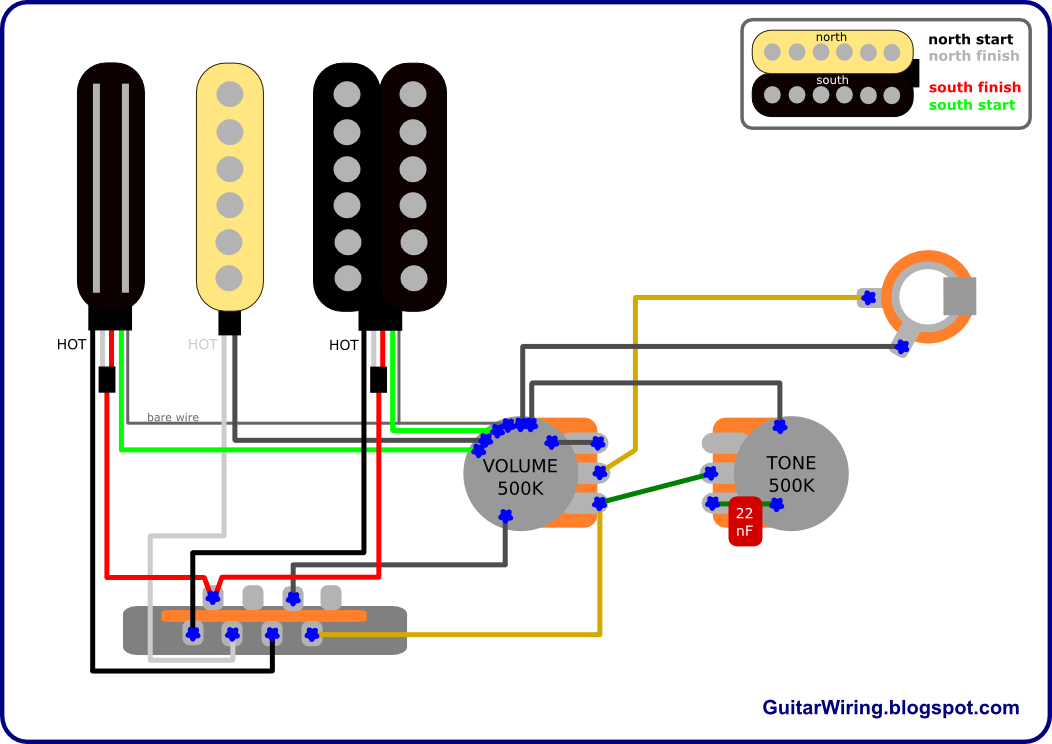

Re: Does this diagram produce these results?
it was in the strat diagrams
and simply illustrates what Funk and Jeremy were saying
it was in the strat diagrams
and simply illustrates what Funk and Jeremy were saying
o.p-i.v
New member
Re: Does this diagram produce these results?
the only thing i would say is the the tone pot wiring on the original diagram is wrong, capacitors legs are attached to the middle lug of the tone pot and the ground, then a wire is placed connecting the right lug (if looking straight at pot, lugs facing you) to either the middle or left lug of the volume (same viewpoint, {wire going to left lug is standard, wire going to middle lug is vintage 50s wiring})
the only thing i would say is the the tone pot wiring on the original diagram is wrong, capacitors legs are attached to the middle lug of the tone pot and the ground, then a wire is placed connecting the right lug (if looking straight at pot, lugs facing you) to either the middle or left lug of the volume (same viewpoint, {wire going to left lug is standard, wire going to middle lug is vintage 50s wiring})
F
Funkfingers
Guest
Re: Does this diagram produce these results?
Either way of running a signal feed to a tone pot will work.
Famously, the capacitor-sharing, two pot Tone control circuit of a vintage Stratocaster manages to use both connection methods in the one instrument.
Either way of running a signal feed to a tone pot will work.
Famously, the capacitor-sharing, two pot Tone control circuit of a vintage Stratocaster manages to use both connection methods in the one instrument.
