Duncan Stingray 5 Coils Question

[craigzinga]

Howdy, first post. Love my Duncan MM5 pup. If I wanted to install two button switches to turn off/on each coil, where would I splice in the wires? Thnx
Craig

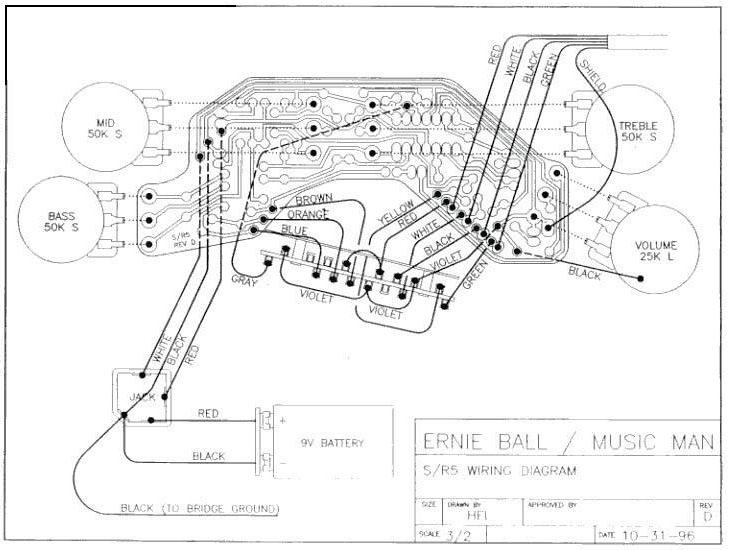

Here's a real-life pic:



[Funkfingers]

Re: Duncan Stingray 5 Coils Question

Welcome to the forum.

The least disruptive location in circuit for the new switches would be between the pickup and the PCB.



[Jeff_vanbuskirk]

Re: Duncan Stingray 5 Coils Question

jdvanman

Sent from my Lenovo A5500-F using Tapatalk



[Jeff_vanbuskirk]

Re: Duncan Stingray 5 Coils Question

That's it!

Sent from my Lenovo A5500-F using Tapatalk



[Funkfingers]

Re: Duncan Stingray 5 Coils Question

jdvanman

That's it!

Say what? :scratchch



[GoldenVulture]

Re: Duncan Stingray 5 Coils Question

jdvanman

Sent from my Lenovo A5500-F using Tapatalk

He's spamming us with his Ebay handle.



[Funkfingers]

Re: Duncan Stingray 5 Coils Question

Doesn't appear to have done him much good.

OP never returned.

Thank Clapton that I wasted no time or effort, producing a schematic diagram. Shucks. Not even DrNewc waded in with one.
