Finally!!! Pearloid Prails!

toasterdude

New member
Had to go custom shop route but the guitars needed pearloid PRails. Thansk to Frank and MJ in helping get these puppies. Also had em installed in my double pearloid bound, purple flame explorer but did not get to take pics before leaving on a 3 month trip.

I may need to order an f spaced one for this tele as I screwed up and just ordered normal spacing. Sounds ok, but I assue f spacing is the way to go.

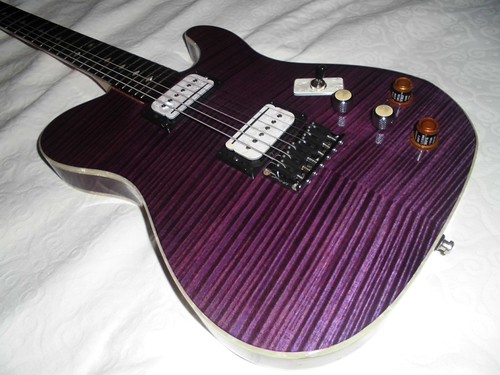

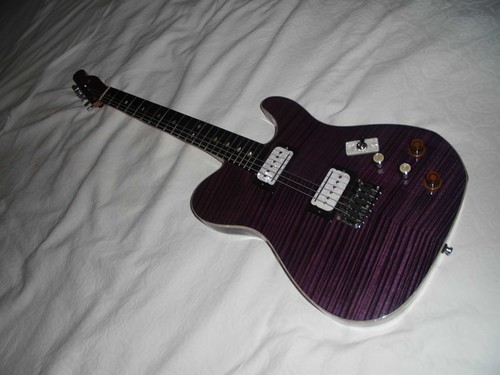

Untitled by toasterdude, on Flickr



Untitled by toasterdude, on Flickr

Re: Finally!!! Pearloid Prails!

Man it looks cool, but what is that white thing on the 3-way?

Awesome looking guitar too BTW!!!

Re: Finally!!! Pearloid Prails!

What all's going on with that guitar? Does it guitar have Variax guts?

Re: Finally!!! Pearloid Prails!

We need:

a) Better pics

b) A full tour of that guitar

Re: Finally!!! Pearloid Prails!

Man it looks cool, but what is that white thing on the 3-way?

Awesome looking guitar too BTW!!!

I call that the "band aid". Didn't like it at first sight. It grew on me though. The old variax 500 guts came with 5 way switch, but the JTV 59 came with 3 way. I originally planned to keep the 5 way in there as a dummy and just add the 3 way, but my luthier came up with the "band aid" idea.

I kinda dig it now, makes it have a more vintage vibe which contrasts with being a 21st centruy guitar to the max. . .lol. .

Re: Finally!!! Pearloid Prails!

We need:

a) Better pics

b) A full tour of that guitar

Yeah, those pics are from my crappy digi cam and were taken in my temp apartment in sao paulo. BTW 2 blocks away from us is a bar called blackmores where we have seen a brasilian kiss tribute band twice last year. Their Ace rocked;-)

Once I get home I may do some videos showing what that guitar can do. I almost always use the mags and models of the JTV simultaneously.

I plug the guitar into POD HD Pro with VDI cable. I use the POD for volume pedal, wah and select additional FX as needed. The POD goes AES out into AXE FX II. Models panned hard left and mags hard right. Each side goes through their own amp and FX chain. Results vary from a fatter sound to a more wide and open sound depending on what I do with the POD and AXE.

For instance my main rock patch will wind up being a custom JTV patch that consists of a PAF and a mini hum stacked on top of each other, then I run the p() side of the prails. If I want to fatten it up a bit I hit one switch on triple shots to put prail into series bucker mode. . .and viola. . fatter sound for single note fills etc.

I typically have an 8ms delay 100% wet in the Axe chain on the right side to seperate the "two guitars". I have done that for years with the PODs but having 2 different guitar sounds takes it to the next level. For a country rhythm I could have a deradnaught on one side with the bridge prail through a DRZ on the pther side.

Some of the prail sounds on their own are so so. Bridge rail doesn't really sound like a tele brigge for instance but when combined with the tele bridge model on variax. . . . cool stuff.

There is a bug in the current POD or JTV FW but barrng that another cool thing I can do is have mags in normal tuning say middle position of the prails both set to rails, then have a tele with 2 filtertrons tuned to nashville high string. Basically the octave sets of a 12 string. Pan one hard left and one hard right and you have te widest sounding 12 string ever. Especially when run through 2 different amps with the 8 ms delay in there.

Whenever I take this puppy out of the case or gig bag I will get some weird looks. Once I play it. . .more weird looks. . .lol.

d

Re: Finally!!! Pearloid Prails!

What all's going on with that guitar? Does it guitar have Variax guts?

Yep it had variax 500 guts for years,but it was just upgraded to JTV variax guts. I used the guts from a black JTV59 but kept the bridge form the original 500. Upgraded the piezos to graphtec.

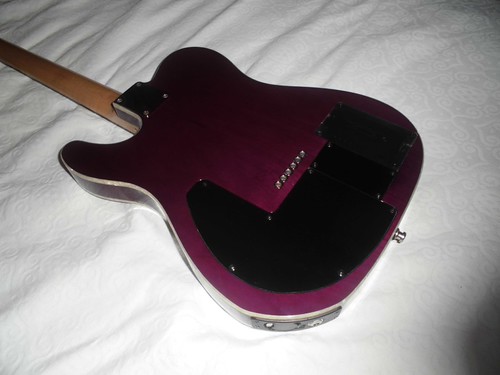

Here is a pick of the back showing how it had to be routed for the xplant.


Untitled by toasterdude, on Flickr

Re: Finally!!! Pearloid Prails!

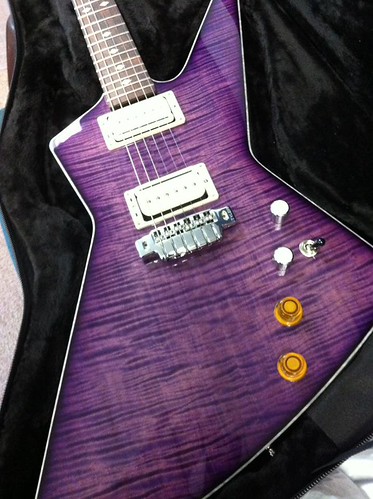

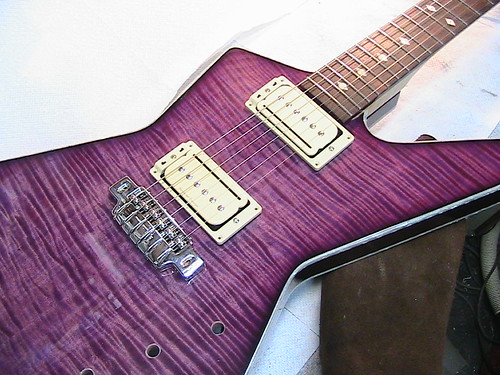

Another crappy pic but the creme prails and triple shots in this guy were alos upgraded to pearloid custom shops with black triple shots. I may need to have some chrome pickup rings hacked to house the triple shot switches. I think it would look better. I also need to change the ugly gold knobs to chrome ones on both of these.


399033_3303939875088_1165721190_32602428_906003856_n by toasterdude, on Flickr


JTV Variax Explorer Purpl Flame xplant by toasterdude, on Flickr

Re: Finally!!! Pearloid Prails!


Re: Finally!!! Pearloid Prails!

I was checking out your Flickr page and noticed you sure like purple guitars. The Variax looks awesome. I love the band aid too. I'd have gone with a more square shape than the rectangle, but it looks good.

Re: Finally!!! Pearloid Prails!

Have you tried flipping the bridge P-Rail pup so the Rail coil is closer to the bridge? It works wonders to better replicate that Tele sound. You may need to swap in an A8 mag next to the Rail to increase the output a bit.
