Frankenstrat and Lynch Tiger replica

[Pat_rocks_and_rolls]

Hello guys,

I sold an old kramer baretta which i made and bought everything i need for the build of the best iconic californian guitars of the 80's : Van Halen's Frankenstrat and George Lynch's Tiger.

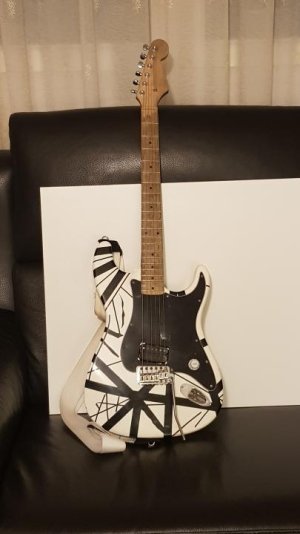

Here is my second Van Halen build (after the kramer 5150 that i Sold) :



This one has :

- A basswood body (yeah i know original one is ash)
- A graphtech nut (original one is brass)
- A gotoh (modern vintage) bridge. (original one is a fender tremolo)
- A 78 model pickup with a 1974 gibson cts pot
- a maple neck (22 frets)

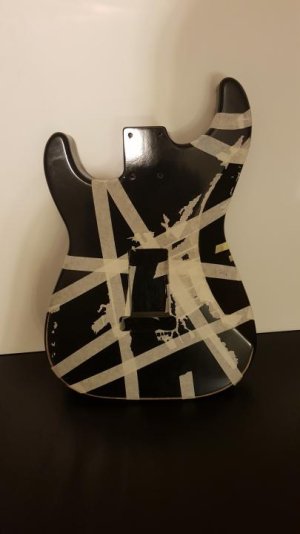

Now this is my new Frankie waiting for the White coat :



This one will have :

- Complete relic treatment scaled with high res templates made with high resolutions pictures of the VH1 Frankie and the Fender Frankie.
- A floyd rose 1984
- A fender EVH pickup (this one will have the 300 limited edition signed by eddie himself. There are some little differences between the limited version of the humbucker and the current ones, I can say they sound slightly different too). The way the pickup is wound is different and the magnet is calibrated differently.

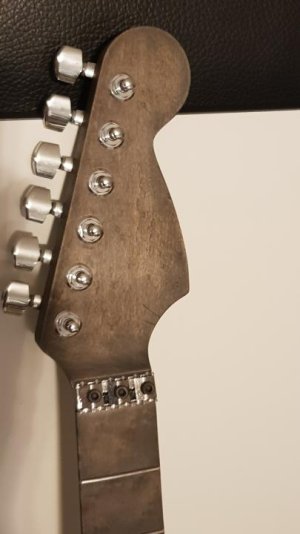

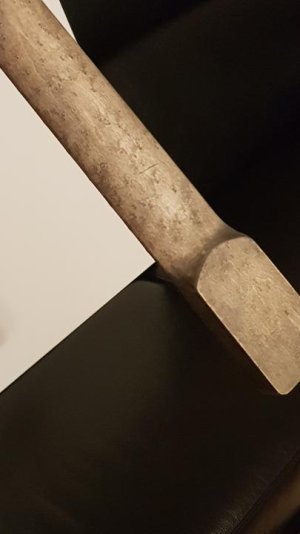

- A Birdseye Maple frankie Neck from Musikraft with steel frets.
- A Northern Ash body for knee guitars
- Schaller m6 mini tuners
- a 500k Cts pot from an old broken 1974 Gibson LesPaul
- Original relfectors (those took me 3 months of research on internet to find someone who still sell them).

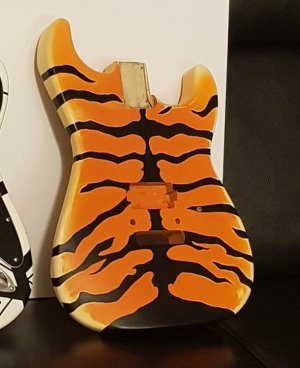

For the George Lynch tiger :

- Vintage non fine tuners floyd rose

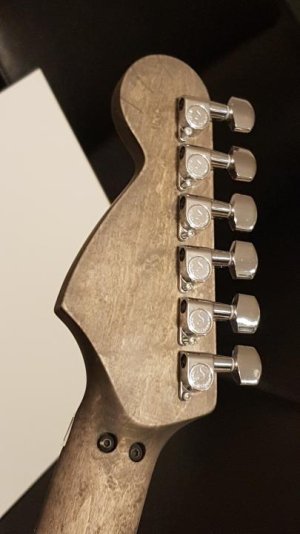

- Musikraft neck (vintage fender style) with graphtech nut
- Gotoh locking tuners (vintage look)
- A Custome JB pickup : pole pieces and screws from a 1974 T top and magnet from the same T Top
- a 300k CTS pot

If you have any advices or knowledges about those legendary guitars i'll take them !



[Ayrton]

Re: Frankenstrat and Lynch Tiger replica



[ehdwuld]

Re: Frankenstrat and Lynch Tiger replica

Who is this George Lynch?
:feedback:



[Pat_rocks_and_rolls]

Re: Frankenstrat and Lynch Tiger replica

View attachment 85542 View attachment 85543 View attachment 85544 View attachment 85545 View attachment 85546

View attachment 85547 View attachment 85551View attachment 85547 View attachment 85548 View attachment 85549 View attachment 85550

Thanks man ! i don't know if it is orange or yellow ?



[Ayrton]

Re: Frankenstrat and Lynch Tiger replica

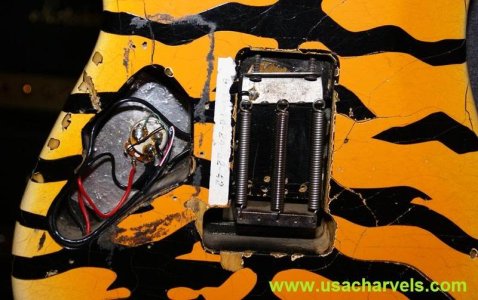

It was built around 1980, the body is heavy one-piece maple from Mighty Mite.

The previous neck was a quartersawn, 1 3/4" wide, maple Boogie Bodies neck with skunk stripe that was built by Karl Sandoval (you could see his signature logo under the ESP logo)

The pick up is a Seymour Duncan Distortion connected to a 500k pot

Apparently, sometime in 2005, the neck began twisting and it was removed for repairs and was replaced by a walnut neck made by John Gaudesi until the maple neck is restored.

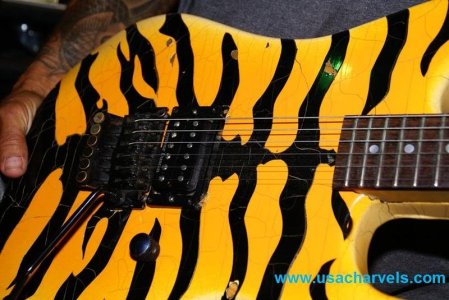

George says that the nitro paint on the body has "cracked like an eggshell."

Regarding the paint, George recalls that the band was headed over to Germany so he wrapped the guitar "in a blanket secured with duct tape." It then got checked it into luggage!!! The flight made a stop in Iceland and by the time they arrived in Amsterdam "the nitrocellulose lacquer had completely checked."
