Ground wire confusion?
- Thread starter Warehard
- Start date
Edgecrusher
Well-known member
Re: Ground wire confusion?
Depends on the brand of pickup... There are many different wiring codes.
Depends on the brand of pickup... There are many different wiring codes.
F
Funkfingers
Guest
Re: Ground wire confusion?
The bare wire connects the metal screening parts of a pickup to ground, regardless of what the other four conductor wires are being used for.
The bare wire connects the metal screening parts of a pickup to ground, regardless of what the other four conductor wires are being used for.
allbutromeo
Well-known member
Re: Ground wire confusion?

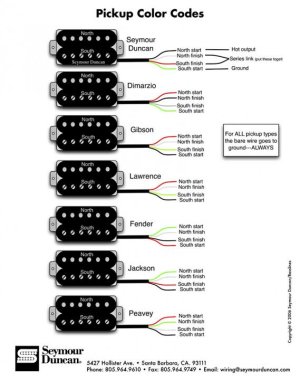

These are most of the major brands, the bottom of the 4 wires and the bare go to ground in most guitars.
These are most of the major brands, the bottom of the 4 wires and the bare go to ground in most guitars.
Re: Ground wire confusion?
Thanks for the chart. This will help. The first pup in the chart is what I have a pair of!
Thanks for the chart. This will help. The first pup in the chart is what I have a pair of!
Artie
Peaveyologist
Re: Ground wire confusion?
I can't believe no one has answered your question directly. Both are ground. You have a "chassis" ground, (the bare wire), and an electrical ground. (The green wire.) However, you may want to connect the pickup out-of-phase. Then the black wire might be "ground". Actually, "grounded" would be technically more correct. So . . . the bare wire, (chassis), is always grounded, while you can select which of the other wires becomes "ground", based on you wiring scheme.
Make sense?
Edit: Btw, my answer is only more clear than the others, if you use my logic. Not everyone does.
I can't believe no one has answered your question directly. Both are ground. You have a "chassis" ground, (the bare wire), and an electrical ground. (The green wire.) However, you may want to connect the pickup out-of-phase. Then the black wire might be "ground". Actually, "grounded" would be technically more correct. So . . . the bare wire, (chassis), is always grounded, while you can select which of the other wires becomes "ground", based on you wiring scheme.
Make sense?
Edit: Btw, my answer is only more clear than the others, if you use my logic. Not everyone does.
Last edited:
F
Funkfingers
Guest
Re: Ground wire confusion?
The OP question is somewhat imprecise. No manufacturer is specified. No circuit application is specified. Hence, it is impossible to provide a comprehensive answer, tailored to individual requirements.
The alternative would have been to provide multiple answers, covering every possible eventuality. Information overload is just as unhelpful as having none.
The OP question is somewhat imprecise. No manufacturer is specified. No circuit application is specified. Hence, it is impossible to provide a comprehensive answer, tailored to individual requirements.
The alternative would have been to provide multiple answers, covering every possible eventuality. Information overload is just as unhelpful as having none.
