Here's my pickups
Neck-prail
Bridge-Duncan JB 4
Here's my switching (with superswitch)
1) Full neck
2) Split neck (rail) with bridge
3) Both full
4) Split bridge
5) Full bridge
1 vol, 2 tone, volume is SPST push/pull

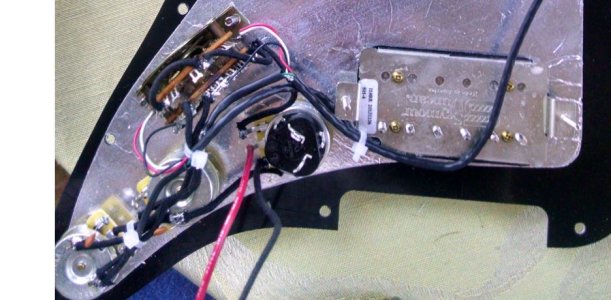

It appears my wiring has red/wht from the rail connected to a common contact. According to Duncan p-rail bible part 2, if I want p90, I could run red/wht/green to ground and black is hot. So is there a way I can use the SPST volume to switch the bridge into P90 mode?
I'm naively thinking I can jump the common with red/wht to ground, but I suspect if I ground a common contact I'll not get anything.
