HB105 wiring same as Blackouts?

[warlok]

I have a pair of HB105 Duncan Designed actives that I'm putting in an Ibanez with 1V, 1T, and 3 way. Is the wiring the same as Blackouts? Or does anyone have a diagram if they are different?
Thanks



[nexion218]

I think the color coding is different than in OG SD pickups. In SD black is hot, but if I remember well the one Duncan Designed set I once had, the green was the hot instead of the black. But other than that it should be pretty much the same I think. Be aware of pot values though! If the guitar had passive electronics before, you will have to get 25kOhm pots and also a stereo output jack!



[warlok]

Yep, I have all the pots, jack, switch, etc. Thanks for the info on the colors. Another question.. Pulling up the wiring diagram on SD site, when I put in HB's, Blackouts for both PU's, 1 volume, it doesn't let me put in a tone pot. Any idea why?



[nexion218]

No idea. Can't do it neither. But I would try using this:

https://www.seymourduncan.com/resources/pickup/wiring-diagrams
Ignore the different pot values and you're left with a 1 vol, 1 tone, 3 way toggle, 2 avtive hb diagram. It should work unless the Blackouts have some quirk that I don't know abot. Never used one, but hopefully someone else chimes in with more experience.



[warlok]

Thanks man. From pics online (haven't removed the DD's from the guitar yet) it looks like the Blackouts and the HB105's both have red/white/bare so should be the same wiring.



[Jack_TriPpEr]

No idea. Can't do it neither. But I would try using this:

https://www.seymourduncan.com/resources/pickup/wiring-diagrams
Ignore the different pot values and you're left with a 1 vol, 1 tone, 3 way toggle, 2 avtive hb diagram. It should work unless the Blackouts have some quirk that I don't know abot. Never used one, but hopefully someone else chimes in with more experience.

That link doesnt work for me, just brings me to the wiring diagrams chooser page.



[Jack_TriPpEr]

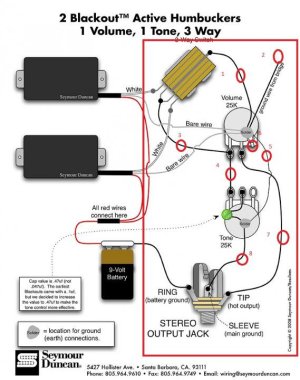

Here's an SD diagram that features 1 tone pot.

See the note that says the value of the capacitor needs to be 0.47uf, not the traditional 0.047uf.



[nexion218]

Here's an SD diagram that features 1 tone pot.

See the note that says the value of the capacitor needs to be 0.47uf, not the traditional 0.047uf.

filedata/fetch?id=6101662&d=1628253210

Hah, it is indeed wrong link! Sorry bout that! I meant to post the Dave Mustaine active diagram, because I couldn't select anything else active 2 hum, 1 vol, 1 tone... While very helpful, that part of thr site has some serious holes in it...



[Mincer]

Hah, it is indeed wrong link! Sorry bout that! I meant to post the Dave Mustaine active diagram, because I couldn't select anything else active 2 hum, 1 vol, 1 tone... While very helpful, that part of thr site has some serious holes in it...

It does, and the wiring diagrams themselves have a few issues, too. Always a good idea to ask here first.
