Help ID a P90

[fretburner]

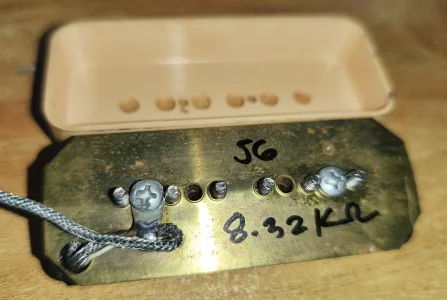

Got this from an old SG. I'm the one who scribbled the DC resistance.

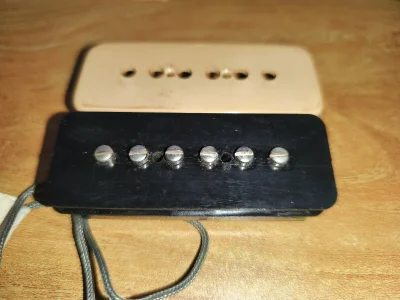

Is this an older Gibson P-90?



[hamerfan]

What colour has the bobbin?
Do I see black plastics thru the holes? Then it's younger than mid 80ies.



[fretburner]

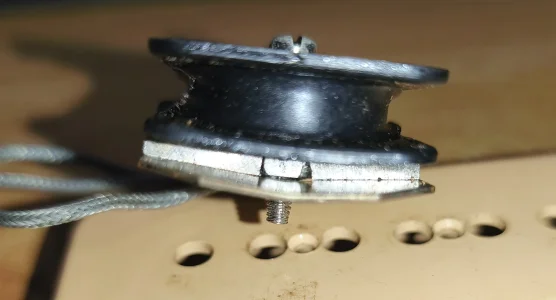

Black bobbins. Could this be a 70s Gibson P-90?



[jeremy]

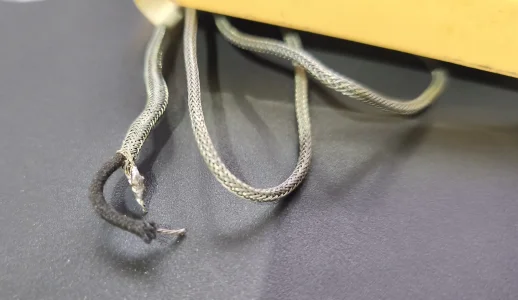

pics of the top might help, what color is the coil wire?



[hamerfan]

Black bobbins. Could this be a 70s Gibson P-90?

No chance, from 1969 on they had clear bobbins and before that they had black bobbins with silvernickel baseplates.
