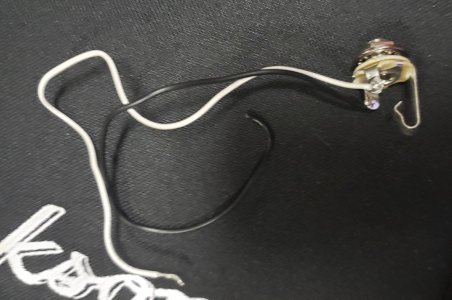

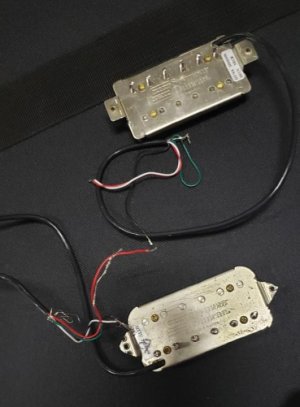

Help me get my JB/Jazz back in my Charvel.
- Thread starter NCASO
- Start date
beaubrummels
Well-known member
What schematic do you have?
I'm not sure if there are more than one Six-Pack Of Sound wirings, but it appears the most recent is just normal B, B+N, N with the push-pull down, and the same split to outer screw coils with the push-pull up. https://blog.charvel.com/2017/02/get...rvel-style-2s/
This Duncan diagram will do that if you just make one modification - instead of connecting the push-pull jumper at the bottom to ground, connect it over to the hot lug on the volume pot.
https://www.seymourduncan.com/images...1VppSPL_1T.jpg

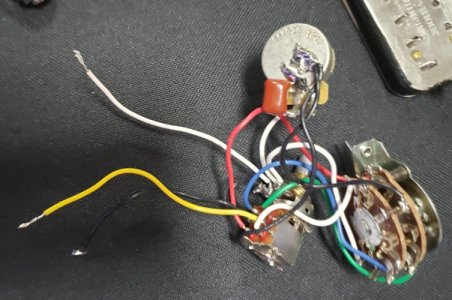

If you're absolutely requiring using the switch wring you have, it looks like it has something more sophisticated going on, as the selector switch is a 3-way super switch (4-pole, 3-throw - 4P3T) and the push-pull looks like it black and yellow wires on the center lugs, a blue on the upper left, and red / white on the lower lugs. Need to either see a photo of a working Charvel with that or an original schematic to figure out how it worked.
Here's a home-made one that was posted on this site, but it appears to split to alternate inner/outer. (also looks like yours has the push-pull on the volume, rather than the tone, however):
https://forum.seymourduncan.com/file...9&d=1612329967
I'm not sure if there are more than one Six-Pack Of Sound wirings, but it appears the most recent is just normal B, B+N, N with the push-pull down, and the same split to outer screw coils with the push-pull up. https://blog.charvel.com/2017/02/get...rvel-style-2s/
This Duncan diagram will do that if you just make one modification - instead of connecting the push-pull jumper at the bottom to ground, connect it over to the hot lug on the volume pot.
https://www.seymourduncan.com/images...1VppSPL_1T.jpg
If you're absolutely requiring using the switch wring you have, it looks like it has something more sophisticated going on, as the selector switch is a 3-way super switch (4-pole, 3-throw - 4P3T) and the push-pull looks like it black and yellow wires on the center lugs, a blue on the upper left, and red / white on the lower lugs. Need to either see a photo of a working Charvel with that or an original schematic to figure out how it worked.
Here's a home-made one that was posted on this site, but it appears to split to alternate inner/outer. (also looks like yours has the push-pull on the volume, rather than the tone, however):
https://forum.seymourduncan.com/file...9&d=1612329967
