help with a coil split with CTS pots, 2 humbuckers, 1 volume, 1 tone, 3 way toggle diagram from SD

[GPW]

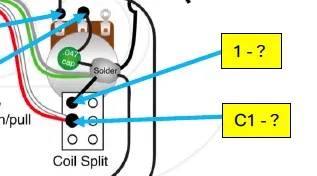

hi, would someone have time to look at this attached Seymour Duncan diagram that I marked up and let me know if I have the tone pot labeled correctly? I've highlighted my thinking in yellow. thanks, greg



[jeremy]

im not sure what you are going for here. what you have labeled as ground, is the signal coming from the volume pot. what you have labeled as output is the cap going to ground which gives you the treble roll off for the tone control.



[GPW]

im not sure what you are going for here. what you have labeled as ground, is the signal coming from the volume pot. what you have labeled as output is the cap going to ground which gives you the treble roll off for the tone control.

thanks...I'm trying to set this guitar up to be able to split coil both humbuckers, and with the 3 way toggle, use them as single coil separately or single coil together, just like I would be able to do with standard wiring without push pull pots to use them as double coil.

can you advise me on what the solder point labels on the tone pot are in this diagram?



[GPW]

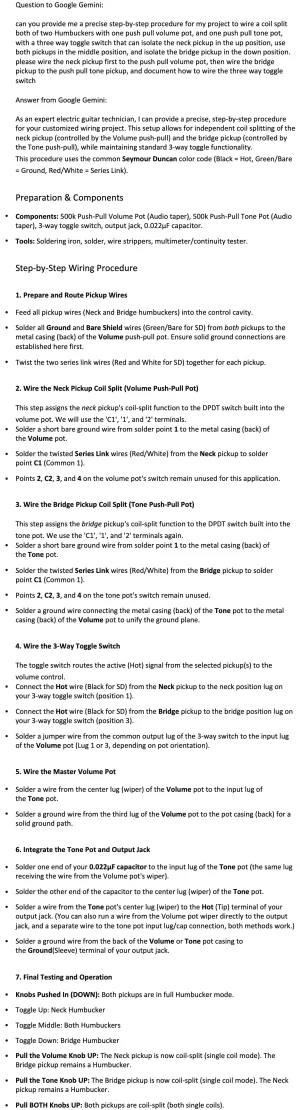

here is what I got from asking google gemini AI



[GPW]

and here is a YouTube video google gemini AI provided me to hear the outcome of this configuration:
