Help with blower switch wiring

[White.Noise]

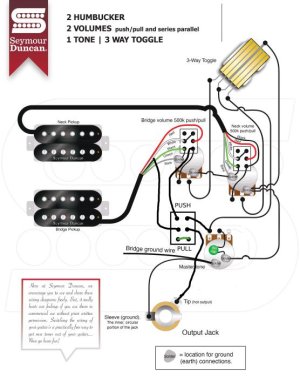

Soldered 3 push push pots into my guitar with independent series/parallel and a blower for the bridge pickup, but im getting no sound, every selector position, blower push or pulled. This is how i went about it but im wondering if the wiring is wrong



[Artie]

I've seen the term "blower" used for a couple different things. Do you mean, bridge pup, direct to output jack, bypassing all controls?

Or, bridge pup, direct to the volume pot, bypassing the switch and tone pot?



[White.Noise]

I've seen the term "blower" used for a couple different things. Do you mean, bridge pup, direct to output jack, bypassing all controls?

Or, bridge pup, direct to the volume pot, bypassing the switch and tone pot?

Blower as in bridge pup directly into the output jack bypassing everything.

The problem was that because of how the push push is shaped it was touching the paint and shorting, some tape fixed it and it works as intended now.



[Artie]

Sweet. I love happy endings.
