Help with wiring diagram ?

[lemmy]

I was wondering if anybody here could help out with my little strat project, the idea is rather simple but since i have not been working on diagrams for a long time this has become a little problem.
The idea is to have 4 pickups; 2 fender texas special, pearly gates and custom custom. Along with that there will be a master volume, master tone, 5 way switch and then 3 toggle mini switch

The idea is to have the 2 texas special and pearly gates activated through the 5 way switch but in addion to that the custom custom could be rachable in the toggle switch

5way switch position
1. texas special neck
2. texas neck and middle
3 texas middle
4. texas middle and pearly gates
5. pearlu gates

3 way toggle switch position
1. only the 5 way switch
2. adds custom custom to wherever the 5 way is positioned
3. only the custom custom

i also have a push poll pot for the pearly gates along with treble bleed mod in this diagram

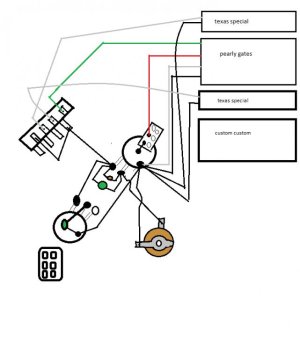

i have drawed the diagram as you should see along with this post ( i apologies for bad paint skills)

can someone tell me what would be the best way to finish this so it would work as described, also if you see errors in the diagram it woul be appreciated if you could point it out ?

thanks for your time



[Funkfingers]

Re: Help with wiring diagram ?

Welcome to the forum.

Your circuit is workable. The HSS portion is conventional up until the five-way selector switch. (You only need to use one half of the switch.) The output from the "pickups" pole of the selector switch then runs to the three-way mode selector DP3T on/on/on mini switch. Here, the combined pickup signals will be sent to the Master Volume and Tone controls.

Wire up the mini switch like the diagram at the bottom of this page.
http://www.seymourduncan.com/support/wiring-diagrams/schematics.php?schematic=3ws_trans
