How do a Push pull pot lugs correspond to DPDT mini toggle (On/On)

[Lkdog]

Adding a DPDT mini toggle to a Strat and using the picture below as the guide.








S
h
a
f
t
[the pot itself]

A D

B E

C F

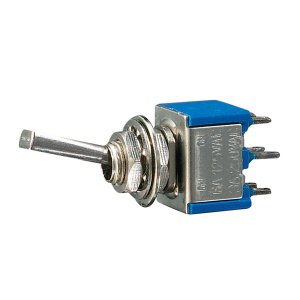

The DPDT Mini Toggle is this one from Radio Shack. Is there a top or bottom on the Mini Toggle or are they interchangeable? One side does have 1/2/3 on it form top to bottom.
https://www.radioshack.com/collections/connectors-connectivity/products/flatted-dpdt-toggle-switch?variant=5717517253





Thanks for any help.



[Funkfingers]

Re: How do a Push pull pot lugs correspond to DPDT mini toggle (On/On)

Functionally, they are identical.

Terminals B and E are always in circuit. The switch bridges to either A and D or C and F.



[Lkdog]

Re: How do a Push pull pot lugs correspond to DPDT mini toggle (On/On)

Functionally, they are identical.

Terminals B and E are always in circuit. The switch bridges to either A and D or C and F.

Thanks! Will give it a whirl.
