How to wire hot rails on a newer strat? no documentation i can find

[WIZARD1325]

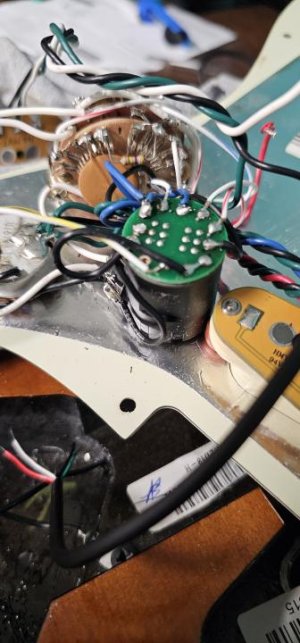

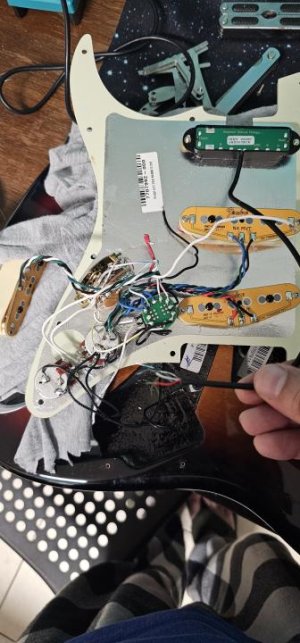

How in the world do i wire this on my guitar?
help please



[Mincer]

That diagram doesn't have the S1 switch, and shows 3 Hot Rails. Are you just replacing the neck pickup? And what does the 5 way switch and the S1 switch on your guitar do?



[WIZARD1325]

yes replacing all

and the s1 switch is like a coil tap or something

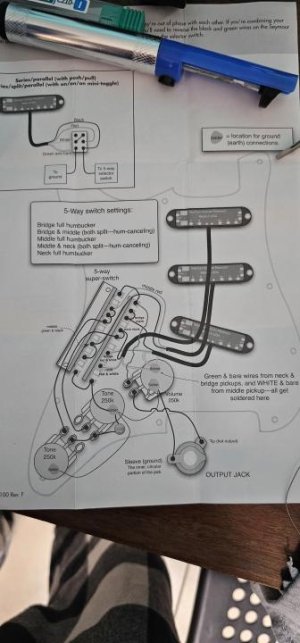

yes thats the diagram that came with the pickups and on there site so its useless.



[Mincer]

What are you wanting the S1 switch to do? It can do a lot of things.



[WIZARD1325]

im just trying to wire this thing up..correctly



[Mincer]

Well, that's it, we need to know what the switch does, or what you want it to do. There is no correct answer, but what did it do before you swapped out the pickups?
