Hss wiring with Bridge n neck on 2nd position

[SERGIODIONISIO]

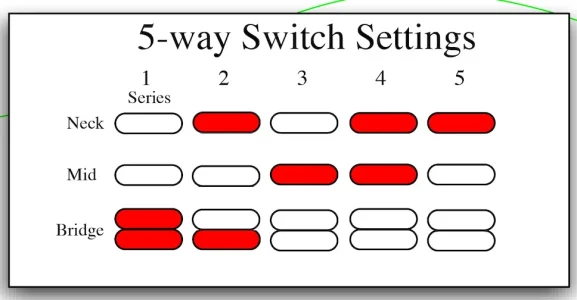

Hi, i wonder if the wiring of the attached imagem is possible. I dont want to use a push switch just wanted this option added. Or maybe the full Bridge with neck added. I Will be using a fender 5 way super switch.

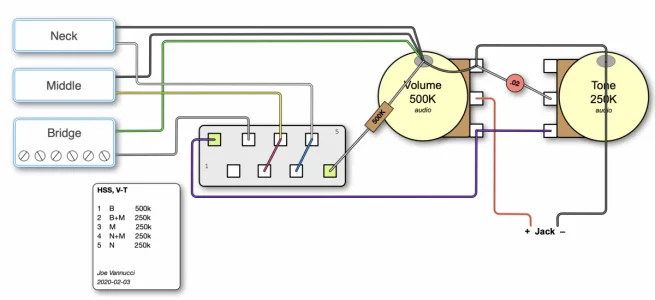

I found a wiring diagram imagem close to what i want. If anyone has a diagram for what i want i would be grateful.
Thank you.



[jeremy]

you can do it, but youll need a super switch. the schematic you posted is basically stock strat wiring with a resistor so the humbucker sees 500k, and all other settings see 250k



[Mincer]

I believe the Schaller Megaswitch model S can do this natively.



[Artie]

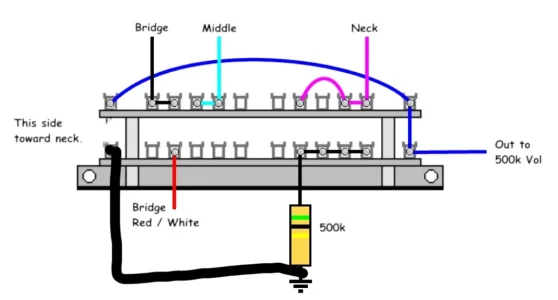

With a standard Superswitch: (Colors are just for clarity.)



[SERGIODIONISIO]

With a standard Superswitch: (Colors are just for clarity.)

Thank you Artie, this diagram will have the humbucker split or full?



[GuitarDoc]

In position 1 the humbucker would be full and in position 2 the humbucker would be split.



[Artie]

In position 1 the humbucker would be full and in position 2 the humbucker would be split.

Yes. With it split to the "screw" coil, since that what your diagram implied. To split to the "stud" coil, simply connect the lower-left most terminal to ground instead of output. (The blue line.)
