Ibanez stock V7/v8 pickups

C

CB434

New member
Does anyone know how to measure output with one of those meter things (noob here sorry) that also happens to own a stock RG?

It's something I've never been able to find information on. I want to upgrade these pickups in the near future but it'd be nice to have a frame of reference for knowing what to put in there. I haven't tried a wide range (of brands or types) so have no idea where they fit in.

I saw an add for them recently where it said 8k.. but I've seen others say that they are really hot and that it slams the preamp making noobs in the guitar store think that they are good. *shrug*

I don't mind them but it's probably because I've learned to EQ thier weaknesses. I know I can expect a big improvement with SD's. But knowing the output would help me alot.

Re: Ibanez stock V7/v8 pickups

Guitar volume and tone controls at maximum.
Selector switch to one pickup.
Resistance meter hot probe on the selector switch terminal for that pickup
Resistance meter Ground probe to a grounding point on the guitar (e. g. Pot chassis.)

Repeat for each individual pickup via its terminal on the selector switch. (Shift the selector to the appropriate position each time.)

Ye olde 2006 Ibanez catalogue states;
V7 (Vintage 7) Neck Ceramic "Tight but bright. Very dynamic for chording and rhythm.
V8 (Vintage 8) Bridge Alnico "Warm yet articulate lead pickup with enhanced overtones. Good harmonics without excessive brightness."

No DC resistance or Inductance figures mentioned.

Re: Ibanez stock V7/v8 pickups

V7 is Ceramic
V8 is Alnico (5 I believe)

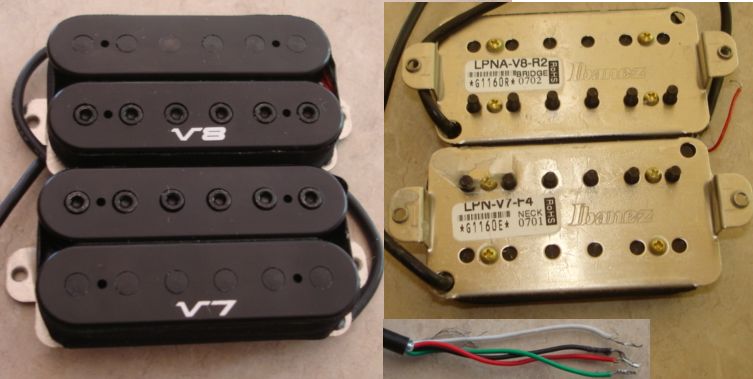

this one?


hang on I can check mine

V7 = 9.54k
V8 = 15.45k

Re: Ibanez stock V7/v8 pickups

The ones I have are like this..




Do you think there would be a difference in the output or is it just visual differences?

Cheers for those readings.. those numbers seem to make alot more sense then 8k, that was confusing me quite a bit.

Last edited:
Re: Ibanez stock V7/v8 pickups

Your readings are correct... thanks again.. really appreciate it.

Re: Ibanez stock V7/v8 pickups

anthonynoahan said:
I am sure that the outputs are accurate as far as my knowledge is concerned. Many of the relays have multiple outputs or throws and this allows an output relay. The outputs to actuators allows to cause something happen in a particular and formatted process. These may share the AC/DC converter using a technique called Multiplexing. Both of the v7/v8 provides multiple outputs and sure that they are very effective.
Click to expand...

welcome to the forum


please note the age of the thread before replying


and could you translate that to English

Re: Ibanez stock V7/v8 pickups

ehdwuld said:
welcome to the forum


please note the age of the thread before replying


and could you translate that to English
Click to expand...

Look at the sig links.... smells an awful lot like spam to me... The awful engrish points to this too... something wonky here
