Is It Possible To Combine Pus-Pull Pots and a Super/Megaswitch?

[SuhrSlinger]

Hi All,

I am working on upgrading my wiring in a double humbucker loaded guitar with one volume and one tone control.

I have a Megaswitch P Model to try. Here is the configuration I would really like to have if electronically possible:

1 Bridge series
2 Inner coils in parallel
3 Outer coils in series
4 Outer coils in parallel
5 Neck series

Push-pull pots for volume and tone controls. Using the volume to switch neck in series/parallel and tone to switch bridge in series/parallel. So in positions 1 & 5 I would have the option of series/parallel for each PUP individually.

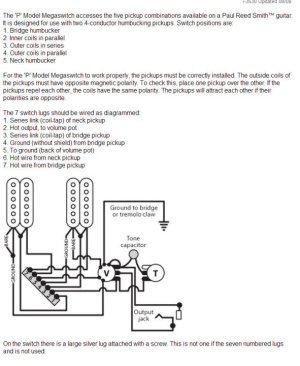

Below is the P Model wiring.

Is this wiring configuration even possible?

Thanks!!!
BJ



[Funkfingers]

Re: Is It Possible To Combine Pus-Pull Pots and a Super/Megaswitch?

The Model P Superswitch is based on the PRS rotary selector switch. It employs three conductor + shield pickup output cable. Adding series/parallel switching to the humbuckers will mess something up. I'll remember what it is in a mo'.



[SuhrSlinger]

Re: Is It Possible To Combine Pus-Pull Pots and a Super/Megaswitch?

The Model P Superswitch is based on the PRS rotary selector switch. It employs three conductor + shield pickup output cable. Adding series/parallel switching to the humbuckers will mess something up. I'll remember what it is in a mo'.

Thanks! I also have this All Parts 5 way switch.


[url]http://www.allparts.com/EP-0078-000-4-Pole-5-Way-Super-Switch_p_1259.html
[/URL]



I wounder if this switch would allow the use of push pulls...

Thanks!
BJ
