chris_t462000
New member
I just found this wiring diagram https://forum.seymourduncan.com/showthread.php?244151-HSH-1-Volume-2-Push-Pull-Tone-5-Way,can you tell me if it's correct as the last poster say's it's wrong.
Thankyou
Thankyou
Is this wiring diagram correct
- Thread starter chris_t462000
- Start date
gregory
New member
Re: Is this wiring diagram correct

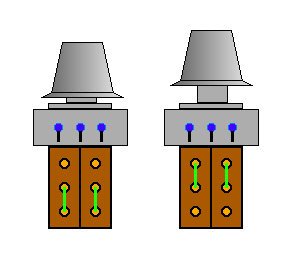

The last post is correct about the pins closest to the pot being active when it is pulled.
I also take issue with the single coil only being attached to a 500k volume pot and no tone control in position 3. It isn't so much that there is no tone control, rather the total resistance loading a single coil, say, in the neck position is 125k. Single coils only loaded with a 250k volume and no tone control are normally considered too bright as it is, at least compared to the other positions.
The last post is correct about the pins closest to the pot being active when it is pulled.
I also take issue with the single coil only being attached to a 500k volume pot and no tone control in position 3. It isn't so much that there is no tone control, rather the total resistance loading a single coil, say, in the neck position is 125k. Single coils only loaded with a 250k volume and no tone control are normally considered too bright as it is, at least compared to the other positions.
Last edited:
chris_t462000
New member
Re: Is this wiring diagram correct
I am new to all of this is there a wiring diagram like this one but correct that's easy for me to follow.
Thank's
I am new to all of this is there a wiring diagram like this one but correct that's easy for me to follow.
Thank's
