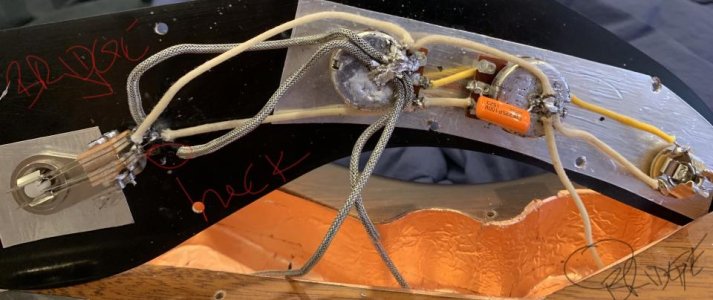

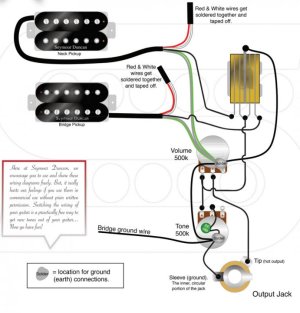

To anyone that can help, please do! I brought a set of klein firebird pickups. I used a seymour Duncan wiring diagram but klein uses single conductor. It's set up is two firebird pickups with one volume and one tone (.47 cap) with a 3 way switch. When I plug it in, the volume is really low even when it's cranked up all the way. The tone knob seems to control the volume as well... I couldn't for my life solder the ground To the jazzmaster tremolo so I put it underneath the jazzmaster tremolo and the body.
