Lori Jazz bass wiring diagram

[mjharrison7]

Hello,

I have an old Lori Jazz bass with two humbuckers. I can't seem to find a wiring diagram for such a thing because there are 3 wires on each pick up: a black and red on each and then a separate color on each pick up, which I assume is for noise reduction.

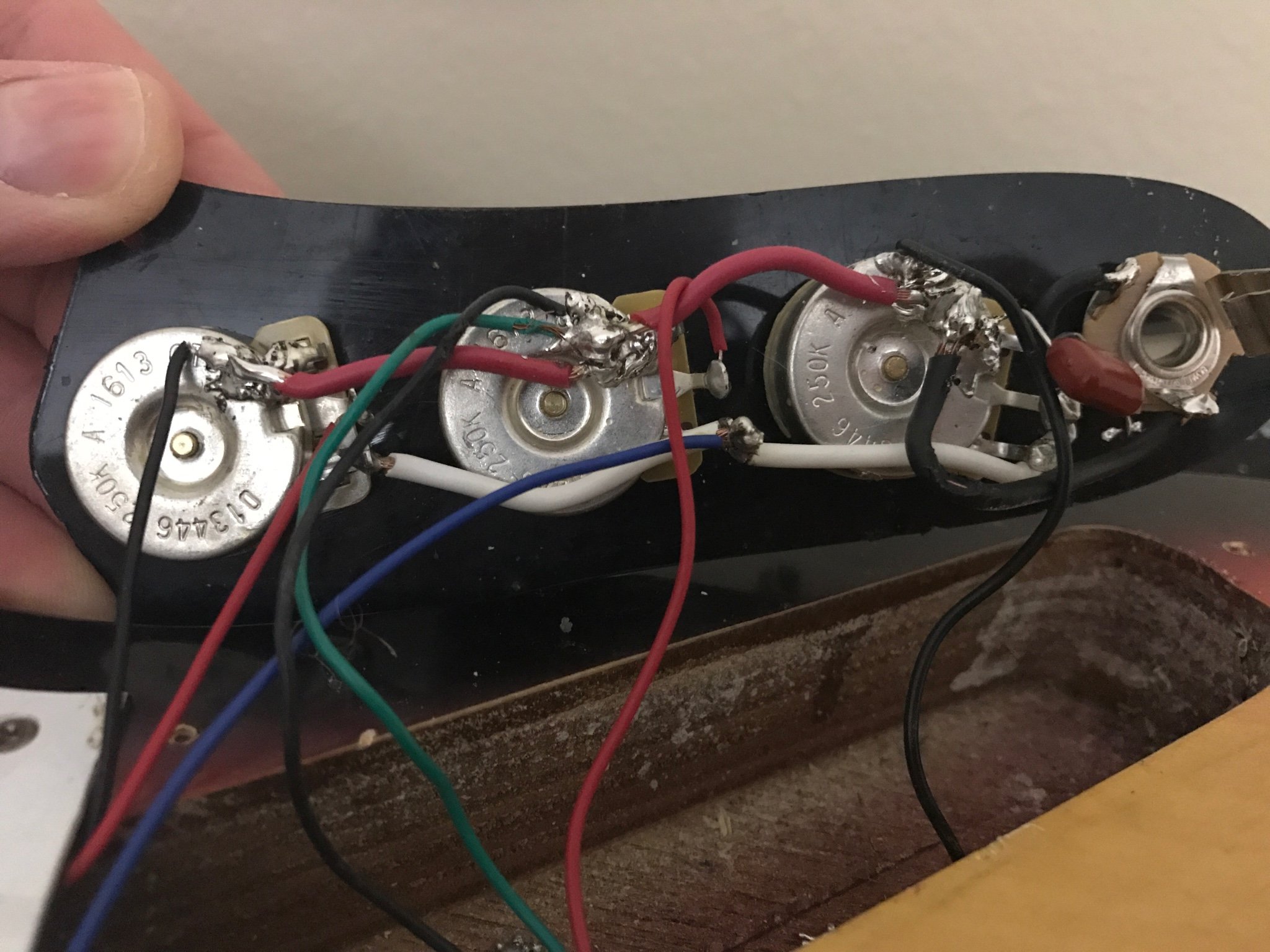

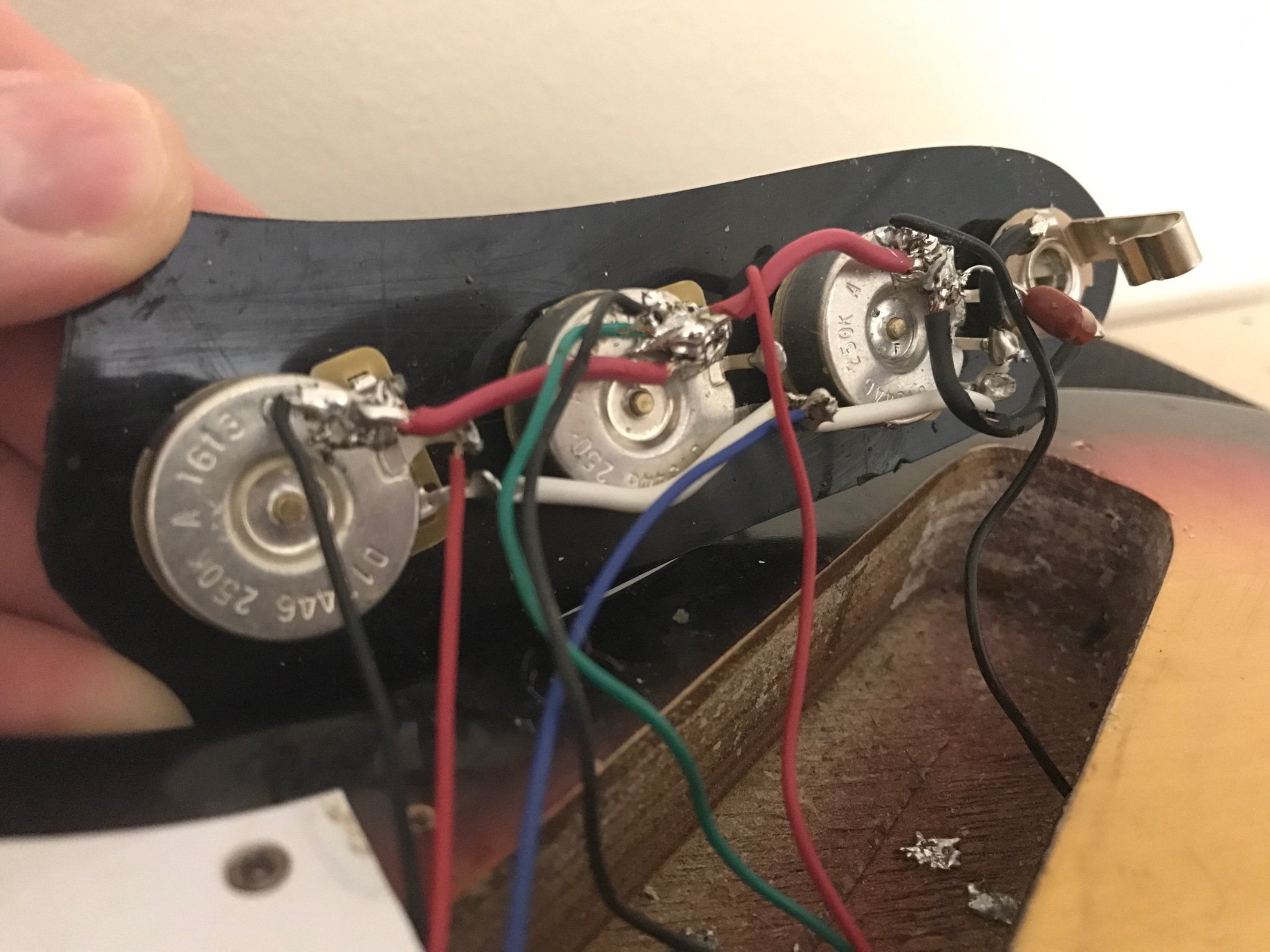

Can anyone lend some expertise on where these are to be soldered? I can provide pics if needed



[KNUCKLHEAD]

Re: Lori Jazz bass wiring diagram

What are the Separate Colors ? Wondering if they are for splitting or phase



[mjharrison7]

Re: Lori Jazz bass wiring diagram

The neck pick up has blue and the bridge pick up has green


Sent from my iPhone using Tapatalk



[jtougas]

Re: Lori Jazz bass wiring diagram

Probably a split.



[mjharrison7]

Re: Lori Jazz bass wiring diagram

Probably a split.

Do you know how that has to be wired? The bass plays but when I touch the neck pick up , I get a heavy buzz


Sent from my iPhone using Tapatalk



[mjharrison7]

Re: Lori Jazz bass wiring diagram

Sent from my iPhone using Tapatalk



[mjharrison7]

Re: Lori Jazz bass wiring diagram

Sent from my iPhone using Tapatalk



[beaubrummels]

Re: Lori Jazz bass wiring diagram

Neck is blue - connected to hot - buzzes
Bridge is green - connected to ground - no problem

My first guess would be try the blue wire to ground and see what happens with the sound of the neck.

My other guess is those wires aren't original to the pickups, that someone tried to either make the neck parallel or single coil to make it less flabby and mix with the bridge, but that is just a wild guess on my part, based only on the information stated here so far. Would need to see pictures of everything and know how the sound changes when each pot is rolled up and down to figure out what the wiring is actually doing.
