Modify my mono cabs to stereo?

[Frogman]

Take my 8ohm 2x12 for example.

One 8ohm WGS ET65 | One 8ohm WGS Veteran 30

If I added a separate jack, I could plug amp 1 into speaker 1 and amp 2 into speaker 2. Easy peasy.

What I am interested in though, is if/how I can make it a stereo cab but retain the ability to run it mono.

I’m sure same applies to a 4x12 as well, but if not, please explain the difference(s).



[Securb]

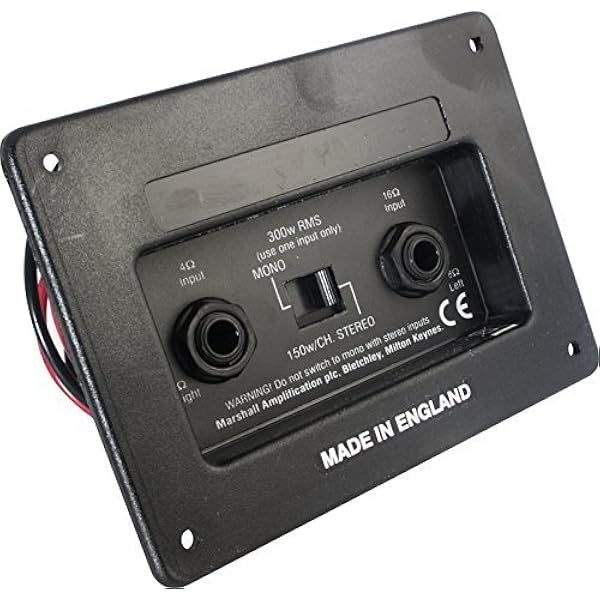

This! I put a 1960A Jackplate in my Marshall MX212 to use it with my JC120. An easy mod and well worth it. I can flip a switch and go back to a mono cab at any time.



[jeremy]

yep. i think mojotone sells one without a switch too



[Securb]

The switch plates can be found on eBay take note there are some counterfeits out there



[eclecticsynergy]

Amplified Parts sells these; they have a store on Reverb.



[Securb]

How can you tell the counterfeits? Do they use a picture of a real one ?

When I bought mine there were some that were too inexpensive to be OEM and I remember the fonts being off.



[Frogman]

You guys rock



[Securb]

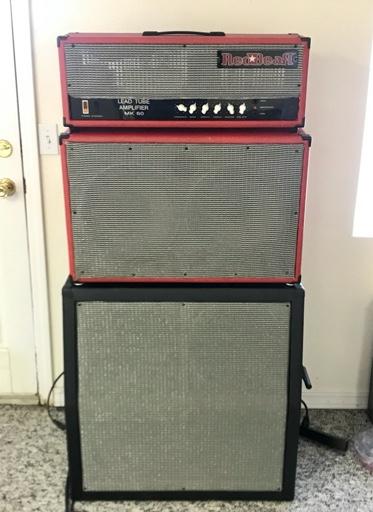

No problem man. Here is my mod.



[Frogman]

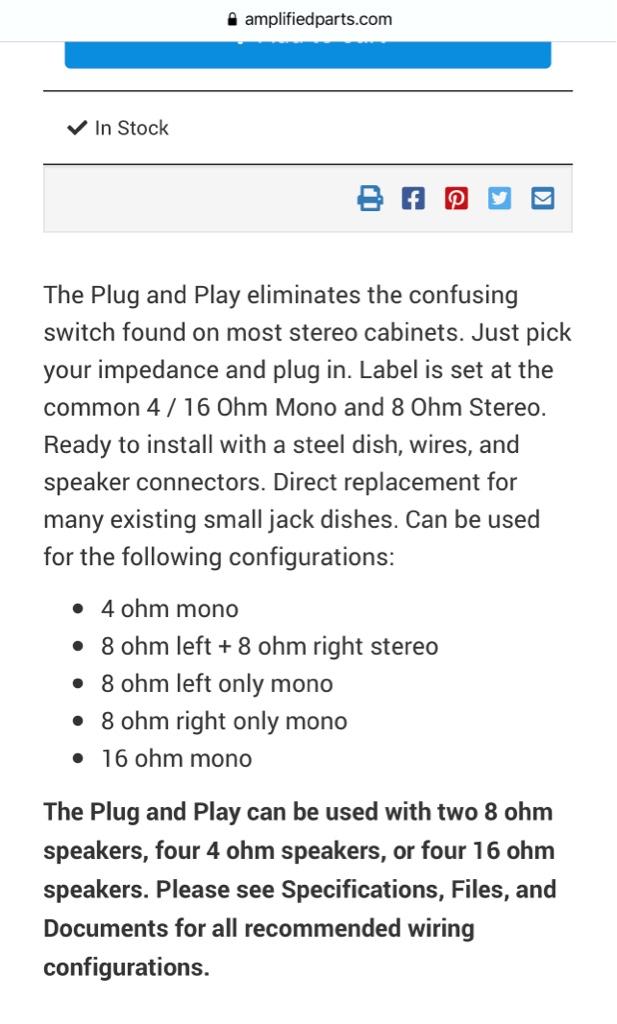

Just bought 2 of these.
One for my current homemade 2x12 and another for the oversized recto dimensioned cab I’m building next month.

Haven’t decided which speakers I wanna use for that one yet.

https://reverb.com/item/2996992-jac...hare&utm_campaign=listing&utm_content=2996992

Sent from my iPhone using Tapatalk



[Frogman]

Frogman How is your project going?

Well I bought two of those Plug n Play Stereo Adapter plates, but my 4x12 is in storage (I moved in November), and I can’t use it with my 2x12 because it has two 16ohm G12K85’s and the adapter requires either four 8ohms or two 16ohm. So haven’t used them yet lol.

On the bright side I just picked up a minty 6505 112.
So I can run through that and my 2x12 in stereo for the time being.

Speaking of that 6505, I’m thinking about changing the speaker for a WGS Invader. I want more of a Marshall bark from that amp than your oft-typical modern-chugga-chug lol.



[Frogman]

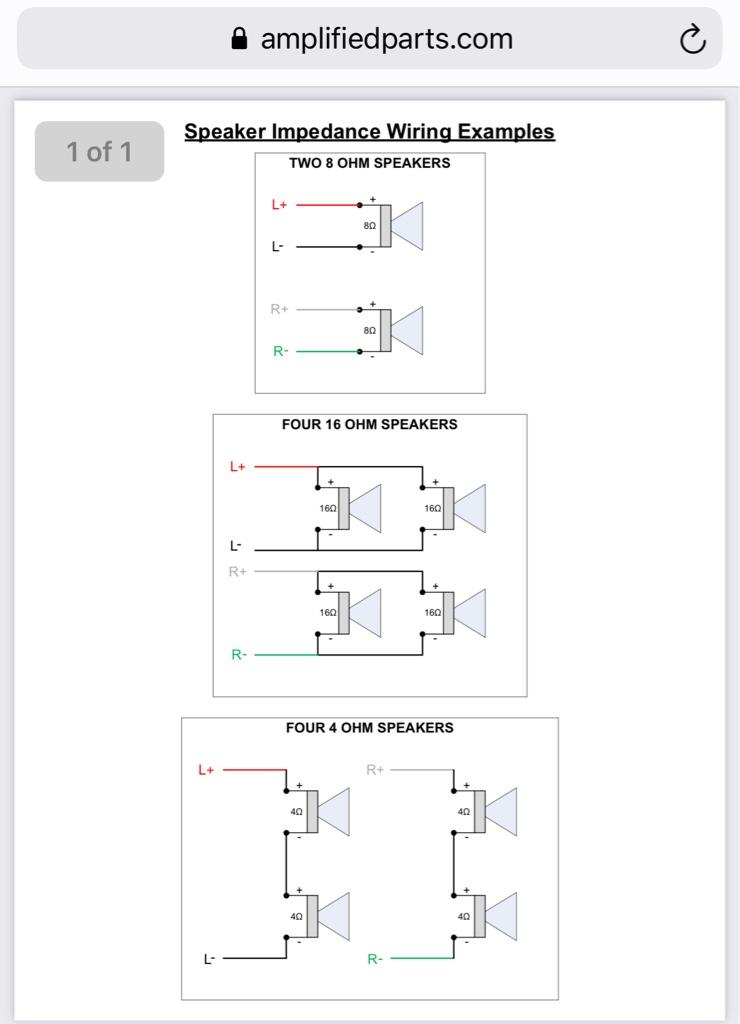

Sure it doesnt say four 16-ohm or two 8-ohm? You could use the two 16-ohm speakers, only all of your impedances would be doubled. You would have 16-ohm per channel in stereo, and in mono you would have your choice of 8-ohms mono (would work with most amps) or 32-ohms mono (probably not very useful).

Shit, so I cannot even use it with my 4x12 (four 8ohm speakers). The f$#% was I thinking?!
#facepalm



[Securb]

I have two 8 ohm speakers in my cab.



[jeremy]

you have four 8 ohm speakers in a cab? how is it wired? that seems odd. most 4x12's ive seen, and all ive owned, have had 16ohm speakers



[jeremy]

Apply these same principles to a pair of 16-ohm speakers, and you will see how you can do the 2x12. It will be simpler, because there is really only one way to hook them up. You will have 16 ohms per side in stereo and either 8 or 32 ohms in mono.

thats correct, but who wants a 32 ohm cab?



[Demanic]

thats correct, but who wants a 32 ohm cab?

Four 16ohm speakers wired in series/parallel is 16ohms.

Sent from my SM-A115A using Tapatalk



[LLL]

thats correct, but who wants a 32 ohm cab?

But think of all the TOANZ with 32 ohms.

32 ohms is 4 times as much TOANZ as 8 ohms.

:13:



[JamesPaul]

I've always thought 16 ohm speakers/cabinets gave one the most versatility.



[JamesPaul]

You can run two 16-ohm cabs in parallel for 8-ohms, which makes most amps happy. It just gets a little silly when you connect them in series. 16-ohm speakers are obviously aces for a 4x12, though.

I have been known to run 2 16 ohm cabs on an 8 ohm transformer tap, or 4 16 ohm cabs on a 4 ohm transformer tap.
