NAD -1993 Fender 1000 Roc-Pro w/custom built 12AX7 preamp

[RogerMexiko]

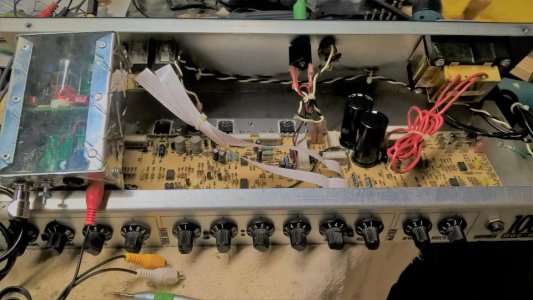

100 watt amp with effect loop. Preamp connected to effects loop return.
Preamp:
single channel, single stage, all tube preamp features an adjustable 100v-250v power supply that runs from a 12 volt DC source and a simple, stable design:
Improvements In staging, imaging and noise floor (Dead silent operation)
High gain bypassed operation.
Adjustable 100v-250v B+ voltage from a 11.5vdc-14.4vdc power source.
1 gain potentiometer FR 10Hz-100KHz@ +_1 db Noise: .003vrms
Input impedance: 24k Output impedance: 580ohm
Sensitivity (Max input before clipping @1khz): 5vpp - 1.77vrms
Produces gain way past that point.



[philthis]

Re: NAD -1993 Fender 1000 Roc-Pro w/custom built 12AX7 preamp

I know that Amp, for the money it's a good inexpensive Amp. It will.easily power a 4x12 cab. I think it sounds better with celestion speakers. It's cleans are fender and wile not overly spongy, there good enough to gig with just fine
