need confirmaton for a wiring with p-rails

[arkhamxx]

hi all

i work on a project with 2 seymour duncan p-rail, with a lot of options

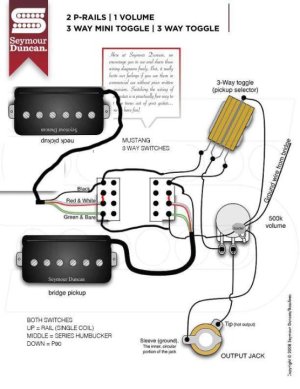

but i m bad with the wiring, and i need your help to confirm or not, that this wiring is good , cause i want to us slide switch for the selection of the mic, but i m not sure of which i need ( i know it exist on/on/on and on/off/on version)



regards


want to knwo



[GuitarDoc]

That diagram looks correct for what you want.



[arkhamxx]

ok ghanks

but it s a on/off/on version ? or a on/on/on version ?



[GuitarDoc]

To get that, you could use either on-on-on or on-off-on since the middle position doesn't actually do any connection.



[arkhamxx]

ok thanks
