NMWGBD (New Multi-Wood Guitar Build Day)

[GuitarDoc]

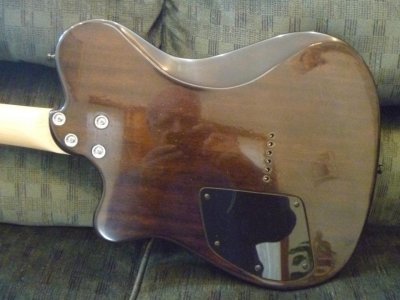

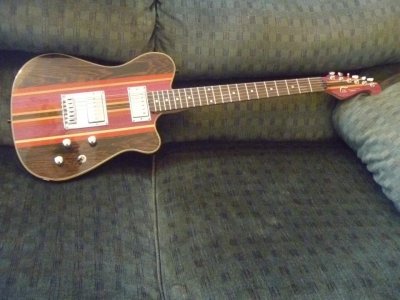

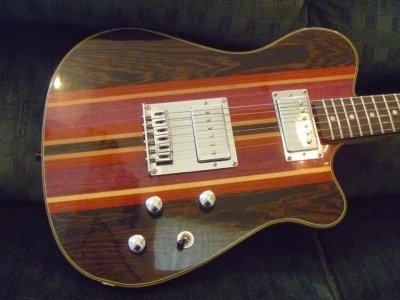

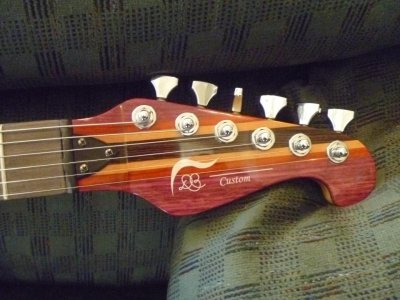

I've been working on several builds lately, just completed this one. The body is mahogany (chambered), the top is Wenge, Padauk, Purple Heart, and maple. The same woods were used to create an 1/8" veneer for the headstock. Finish is polyurethate. Tuners are Hipshot locking. Pickups: bridge = GFS Dream 90, neck = GFS Vintage 59. This is the first one of my builds to get my new logo on the headstock. 5-ply binding: thin white, thin cream 2x thin black, thick cream. 3-ply binding on the side. Two vol, master tone. Compensated nut.



My camera battery is going dead. I'll add more pics in a few minutes.



[StoRMiE]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Beautiful, out of curiosity how long did the build take?



[Silence Kid]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

You put my initials on it; for me, right?



[Ayrton]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Awesome!



[Undone]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

That's beautiful. What compensated nut do you use? Earvana?



[Undone]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Please more pics of that binding also.



[TVFV]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Reminds me of an old surfboard... Beautiful work as always!!

Sent from my Pixel XL using Tapatalk



[Slartibartfast]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Ditto on that surfboard.

Beautiful.



[Darg1911]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Very Purdy.



[PS412]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Nice. Looks good



[GuitarDoc]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Beautiful, out of curiosity how long did the build take?

Close to 6 months for this one.



[GuitarDoc]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

You put my initials on it; for me, right?

Sure.



[GuitarDoc]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

That's beautiful. What compensated nut do you use? Earvana?

I make my own. Usually I use a blank of bone, but I had an old black Tusq nut taking space in my drawer, so I cut the compensation in that nut. If you look close you can see the difference between this and the Earvana (especially on the low "E".



[GuitarDoc]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Reminds me of an old surfboard... Beautiful work as always!!

Sent from my Pixel XL using Tapatalk

Well that Dream 90 is nice and spanky...you could play surf music with it.



[GuitarDoc]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

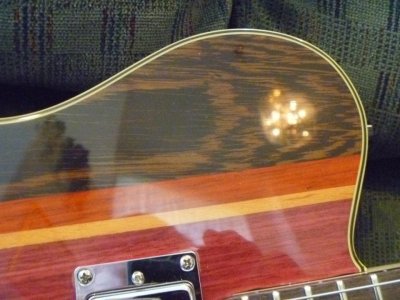

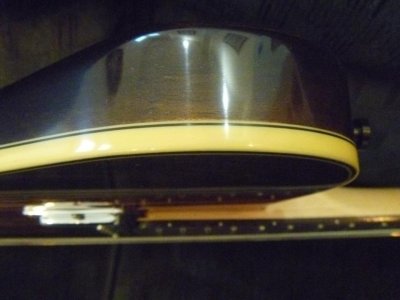

Here are a couple more pics, mainly of the binding.



[BlueSnMettle]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Beautiful! You are a true craftsman!



[Undone]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Here are a couple more pics, mainly of the binding.View attachment 89023View attachment 89024

Nice job. True attention to detail. That guitar is quite impressive sir. Much respect.:notworthy



[Undone]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Coil splitting? .....and how long is the waiting list? :bigthumb:



[6stringerguy]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Is that wenge, mahogany or Bubinga, maple and purpleheart on the the top??



[MetalManiac]

Re: NMWGBD (New Multi-Wood Guitar Build Day)

Gorgeous . Great work. Would proudly own and play that. Too bad you finished it in tone smothering urethane.
