NPD GCA Prototype #1

[6stringerguy]

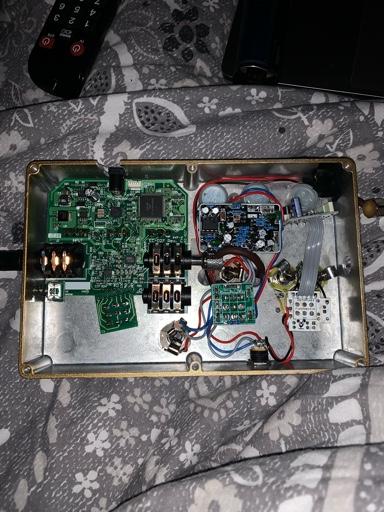

Here is the first pedal I’ll ever put together, it’s two kits (Dallas Rangemaster and Proco Rat 2) merged with an Electro-Harmonix Micro POG, semi modular layout so you can rearrange the signal chain and all can be used independently or simultaneously.
It’s rough but it works and it’s first attempt at soldering let alone pedal building

Sent from my iPhone using Tapatalk



[jeremy]

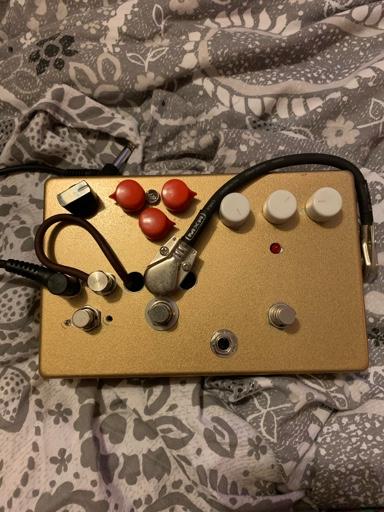

interesting place for the output jack. hows it sound? everything work as its supposed to? looks like its rangemaster into pog into rat in the pic?



[6stringerguy]

interesting place for the output jack. hows it sound? everything work as its supposed to? looks like its rangemaster into pog into rat in the pic?

You can rearrange the order, yeah it’s awful placement because I drilled the initial holes too close together and just had to put it somewhere.


Sent from my iPhone using Tapatalk



[6stringerguy]

interesting place for the output jack. hows it sound? everything work as its supposed to? looks like its rangemaster into pog into rat in the pic?

Sounds surprisingly good so far my favourite order is RAT-RANGEMASTER-POG.


Sent from my iPhone using Tapatalk



[Mincer]

I love that it is modular like that. I wish my first pedal-building was that inventive. I went for a BYOC Overdrive first.



[6stringerguy]

I love that it is modular like that. I wish my first pedal-building was that inventive. I went for a BYOC Overdrive first.

The Octave Rat combo was inspired by the Fuzzlord Effects Nazareth and the Rangemaster is Iommi inspired, it just made sense to be able to reorder them while retaining them in one box.
