Opinions on my wiring scheme, what do you think?

[Rickygene]

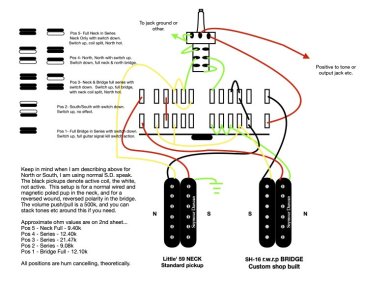

After some help on another strain, I finally came up with a workable scheme. Please share your opinions or if you have any change ideas to this, let us know. As of now, this works well for me with 8 usable sounds and a kill switch capability when the switch is in the bridge position. Thanks!



[Rickygene]



[Rickygene]

Here is a video of the build.... https://youtu.be/HYcZ3yZu9Xo



[Rickygene]

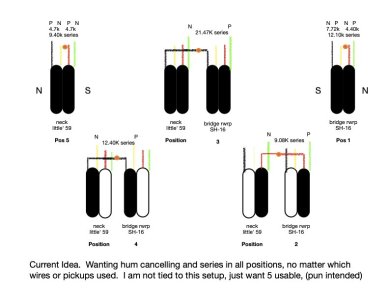

Updated setup....



[beaubrummels]

If it works well for you, cool. Personally, I haven't had much call for pickups in series unless they were also out of phase.



[Artie]

Interesting scheme. And like beau said, if t works for you, that's all that counts. (I watched your video.)
