I am installing the P-Rail set on a kit Jaguar. it has a volume/tone with a three way toggle switch(less paul style). the lower control plate with three three way switches, and the upper control panel with a switch and the two roll-y knobs/volume controls. Nothing is wired in since this is a kit guitar and I am just getting ready to do the pickup install. I want to have each pickup be able to operate this way independently of the other, and on a three way toggle(les paul style) to combine them. I would like to have the P-rail setup so I can have each pickup operate in series, and parallel. I want to be able to choose between rail or P-90 or both in each pickup. I also want to be able to phase switch the rail and the P-90 in each pickup. I have switches and push pull pots available to me to make this overly complicated silly thing work! thanks in advance for any help! I did read through the P-Rail bible and got some of the info i needed BUT I want to make sure I can get this right and clean inside! HAHAHAHAHAH
P-Rail mania!!!
- Thread starter Curran
- Start date
Jack_TriPpEr
Well-known member
Re: P-Rail mania!!!

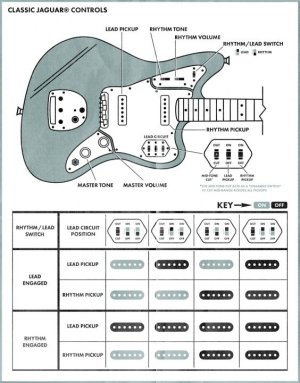

You mention three 3-way switches in the lower plate, but are you sure those are not just 2-way switches? This diagram of typical Jaguar controls indicates that those switches are 2-way switches:
Also, your statement about out-of-phase feature reads like you literally want to choose for each of the four coils, which is out of phase with its mate. Is that what you meant to convey? To accomplish would require a lot more switching capability than what your current controls can handle given you also want parallel, series and choice of split coil on each pickup. It also seems like unnecessary overkill -instead just put one pickup out of phase with the other. Two coils out of phase with each other on the same humbucker, is a nasty shrill sound.
You mention three 3-way switches in the lower plate, but are you sure those are not just 2-way switches? This diagram of typical Jaguar controls indicates that those switches are 2-way switches:
Also, your statement about out-of-phase feature reads like you literally want to choose for each of the four coils, which is out of phase with its mate. Is that what you meant to convey? To accomplish would require a lot more switching capability than what your current controls can handle given you also want parallel, series and choice of split coil on each pickup. It also seems like unnecessary overkill -instead just put one pickup out of phase with the other. Two coils out of phase with each other on the same humbucker, is a nasty shrill sound.
Jack_TriPpEr
Well-known member
Re: P-Rail mania!!!
I often recommend use of triple shots as a tempaorary Phase 1 approach, where you have access to all the parallel/series/coil split options per pickup, and so you can listen and find out which of those you actually like.... then you can remove the triple shots and wire up the guitar's controls to give you the few options that you actually liked.
Triple shots are relatively inexpensive, quick and eaay to install and remove, and you can reuse them on multiple guitars in this "temporary Phase 1' fashion.
I often recommend use of triple shots as a tempaorary Phase 1 approach, where you have access to all the parallel/series/coil split options per pickup, and so you can listen and find out which of those you actually like.... then you can remove the triple shots and wire up the guitar's controls to give you the few options that you actually liked.
Triple shots are relatively inexpensive, quick and eaay to install and remove, and you can reuse them on multiple guitars in this "temporary Phase 1' fashion.
Last edited:
Re: P-Rail mania!!!
This is something I do as well I find that in most complex switching situations, there are about 5 sounds I would use, and I eventually hardwire those in. I don't like more than 1 move to get to the sound I like.
This is something I do as well I find that in most complex switching situations, there are about 5 sounds I would use, and I eventually hardwire those in. I don't like more than 1 move to get to the sound I like.
Re: P-Rail mania!!!
Am I correct that phase switch is better done on a guitar with independent volume pots for each pickup, to dial in correct balance between pickups? I got the prails with triple shots and a phase switch on my superstrat (1 vol 1 tone control), and the out of phase so far looks like the least usable option.
Am I correct that phase switch is better done on a guitar with independent volume pots for each pickup, to dial in correct balance between pickups? I got the prails with triple shots and a phase switch on my superstrat (1 vol 1 tone control), and the out of phase so far looks like the least usable option.
Jack_TriPpEr
Well-known member
Re: P-Rail mania!!!
Sure, two independent volume controls would be helpful for that purpose.
Sure, two independent volume controls would be helpful for that purpose.
