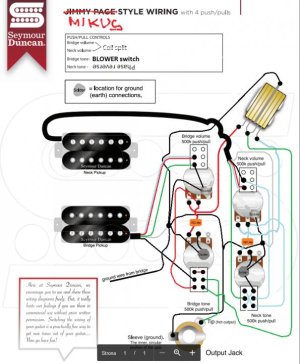

As I have described in my previous thread: https://forum.seymourduncan.com/showthread.php?318937-Pickup-signal-leak-Please-help I had an issue with pickup signal leak between channels. Unable to find the source of the problem, I have decided to rewire my guitar all over again. As I wasn't very happy with the sound produced by humbuckers in series, I decided to modify Jimmy Page wiring by adding a blower switch instead of series switch. I came up with the following diagram:
As you can see, I got little paranoid :knockedou about this signal leak - I even separated bridge and neck grounds from each other (even though I know it probably doesn't matter at all). Will my wiring work the intended way? Thank you in advance!
As you can see, I got little paranoid :knockedou about this signal leak - I even separated bridge and neck grounds from each other (even though I know it probably doesn't matter at all). Will my wiring work the intended way? Thank you in advance!
