Please HELP! Wiring issue.

[Roadhouse]

Hi!

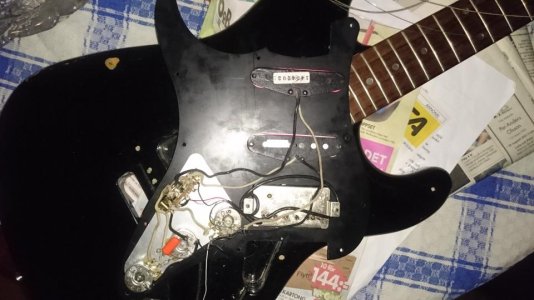

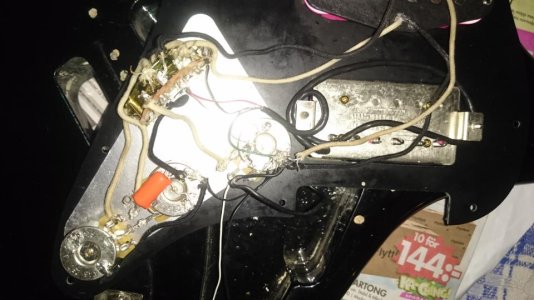

My neck pickup doesn't work and I can't figure out why. I've really tried everything. I'm following the SD auto-split schematic for hss strat.
The bridge pickup and the middle single coil works fine. The tone pots act like a reverse volume on the neck pickup?
The neck pickup is silent when the tone pots are turned up and when turned down there is sound.

My pickups are:

JB bridge
SSL-1 RWRP middle
Texas hot neck

Any help would be appreciated!



[Funkfingers]

Re: Please HELP! Wiring issue.

You have auto coil split AND the original dual tone controls sharing the same pole of the switch.

In official SD schematics for auto coil split, you will find either a single master tone pot connected to the volume pot or a twenty four contact Superswitch.



[Roadhouse]

Re: Please HELP! Wiring issue.

You have auto coil split AND the original dual tone controls sharing the same pole of the switch.

In official SD schematics for auto coil split, you will find either a single master tone pot connected to the volume pot or a twenty four contact Superswitch.

Thanks for The reply. So how do I solve The issue? Which schematic should I use?



[Funkfingers]

Re: Please HELP! Wiring issue.

I would happily direct you to a couple of suitable schematic wiring diagrams but, in its present form, the site support zone makes this impossible.
