View attachment 64381I know this had been asked before, but I installed a JB in the bridge of my 1987 PRS Custom and wired it to the 5 way selector.
WEll now, I wanted the sound of the Blackouts and I purchased the Modular Preamp, and removed the 5 way rotary for a 3 way selector.
So 2 humbuckers one BMP/volume 1 Tone, 3 way toggle. (NO coil tap or series anything!)
My question is...
What is the correct wiring diagram for 1 PRS Rhythm (black Red White Ground-wire) and SD JB Treble pickup?
I was planning on wiring the JB as shown in the Modular preamp diagram, but not sure how to wire the PRS Bass pickup?

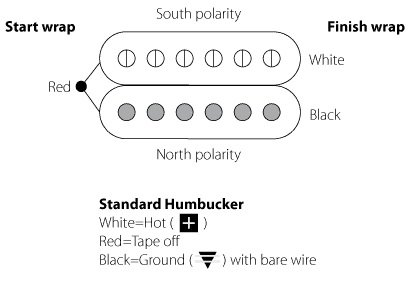

I know PRS: white=hot red=split Black ground ... or at least I think so. View attachment 64381
WEll now, I wanted the sound of the Blackouts and I purchased the Modular Preamp, and removed the 5 way rotary for a 3 way selector.
So 2 humbuckers one BMP/volume 1 Tone, 3 way toggle. (NO coil tap or series anything!)
My question is...
What is the correct wiring diagram for 1 PRS Rhythm (black Red White Ground-wire) and SD JB Treble pickup?
I was planning on wiring the JB as shown in the Modular preamp diagram, but not sure how to wire the PRS Bass pickup?
I know PRS: white=hot red=split Black ground ... or at least I think so. View attachment 64381
