Push/Pull Series/Parallel: 2 Vol, 1 Tone wiring verification

[dtanna73]

Hi, I am wiring up 2 humbuckers (1 mini in neck, 1 Little '59).


2 Volume, 1 Tone. I have 2 volume push/pull pots, to select series/parallel for each humbucker.

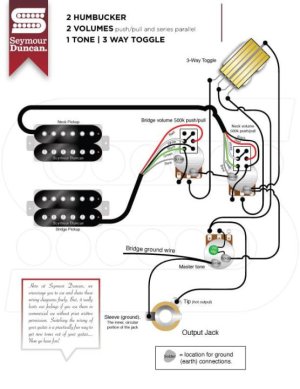

The wiring diagram on the SD website seems like the bridge volume pot wiring is incorrect?

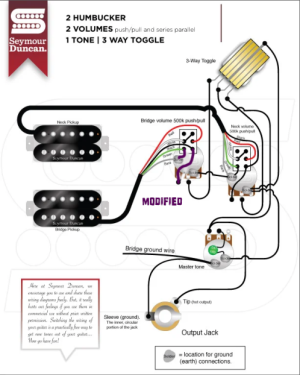

My gut tells me it should be like the mod I attached. (the modification I made with the purple lines). Basically, mirroring the neck vol pot wiring....

Can y'all tell me which version is correct? or if there is an updated or alternatives you may have? Many thanks!​



​



[beaubrummels]

The mod looks right for both pickups independently having parallel coils. I think in the first drawing they were trying to put both pickups in series with each other while each having parallel coils selected but they screwed it up. I don't think it would have worked because that would have required pulling both at the same time, I think.



[Artie]

Yeah. The first is wrong, the "modded" one is correct.
