S1 7-Tone "Neck On" Switch

[dayman]

I'd like to wire my Strat to have a "neck on" switch. I'd like to use the S1 control to do so. I'm wondering how I can wire something like this:



into the S1 switch?

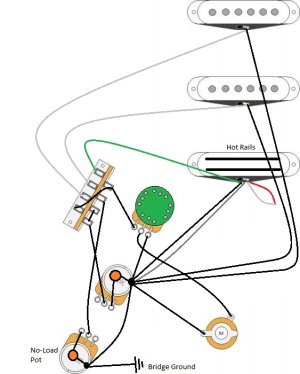

Here is a diagram of my current setup (I added the S1 to the diagram). I'm not sure where the wires should go on the S1.



I have dual tone controls so I can use a different capacitor value for the Hot Rails. I also had to wire the green wire from the Hot Rails as the hot wire as I had phasing issues running the black as hot.



[dayman]

Re: S1 7-Tone "Neck On" Switch

I was reading about switches (not the S1) here:
http://www.stewmac.com/How-To/Onlin...ing/Understanding_Guitar_Wiring_I-4000_7.html

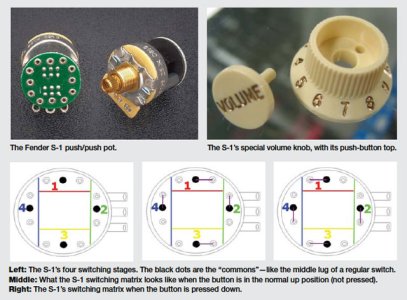

I was able to find these two pictures regarding the S1:





So, going by these pictures, should this theoretically work?
