Seymour Duncan JB TB4 - wiring scheme

[Danteodosi]

Hi everyone, my name is Daniele and this is my first message.
Do someone kindly have a wiring scheme to install a Seymour Duncan JB TB4 at the bridge in a Fender Stratocaster american ultra (SSH configuration)?
The Fender Stratocaster ultra has a “5-way super switch” and an S-1 volume control switch.
Thank you very much
​



[jeremy]

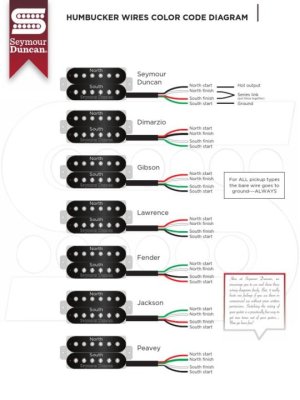

welcome to the forum! i assume there are four colored wires coming off the current fender pup. the bare wire always goes to ground. i dont know how the color codes match up between fender and duncan off the top of my head, but i think this is accurate?



[Danteodosi]

thanks Jeremy, my stratocaster originally has 3 single coil pickups, and I'm going to replace the single coil at the bridge with a humbacker, so I don't know where to solder the 4 cables coming out of the pup.



[beaubrummels]

Are you sure it has a 'super switch'? You said you had an HSS but then said you had 3 single coils. Nothing in either switching description indicated a super switch would be needed. For the HSS the S-1 splits the humbucker, and for the SSS the S-1 just turns on the neck in all positions, the 5-way switch just does normal Strat 5-way switching.

I believe to match Fender pickups, the Duncan would need to be wired out of phase. So red+white soldered together and covered, green to hot and black to ground. But someone who has recently mixed Duncans with Fender noiseless will have check me on that.



[Danteodosi]

Are you sure it has a 'super switch'? You said you had an HSS but then said you had 3 single coils. Nothing in either switching description indicated a super switch would be needed. For the HSS the S-1 splits the humbucker, and for the SSS the S-1 just turns on the neck in all positions, the 5-way switch just does normal Strat 5-way switching.

I believe to match Fender pickups, the Duncan would need to be wired out of phase. So red+white soldered together and covered, green to hot and black to ground. But someone who has recently mixed Duncans with Fender noiseless will have check me on that.

You're right, I described the situation badly in the first post. I explain to you:
the guitar originally had an SSS configuration, it becomes hss by replacing the single coil at the bridge with the Saymour Duncan​



[jeremy]

is this the current mia ultra? if so i dont think it has a super 5 way, but does have the s1. currently, i believe the s1 is wired to just add the neck pup in the bridge or bridge/middle positions.

if you want to keep that same configuration, red+white soldered together and covered, green to hot and black to ground, sounds correct.

the s1 switch is capable of more than just that so you do have options



[Mincer]

Aren't modern Fenders still out of phase with Duncans?



[jeremy]

yes as far as i know, which is why we flipped green and black (normal would be black to hot, green to ground)



[Danteodosi]

Thanks so much everyone, I found all the answers in this old post. I'll paste the link in case it's useful to anyone. Hello everybody.
