mwmeci28
New member
This is a continuation from this thread: "DiMarzio 36th anniversary PAF sounds like I'm playing through a phaser."

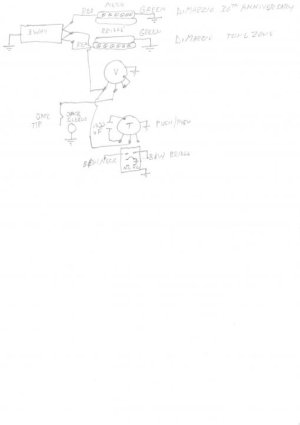

Someone asked for a wiring diagram to make sure it's correct.
Next, I think the inner coils are active when the switch is activated.

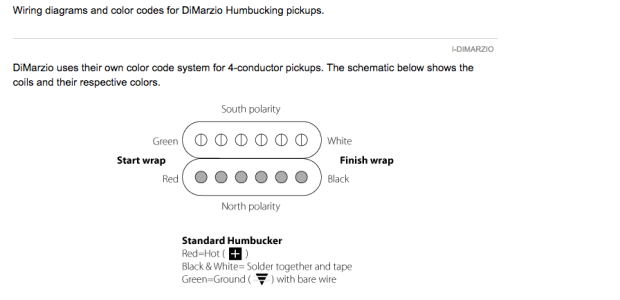

Every pickup wire is grounded when the switch is activated except for red which is the start of the slug coil. Current flows from ground (the black wire is now grounded)
through the slug coil to red to the output. Correct?
Someone asked for a wiring diagram to make sure it's correct.
Next, I think the inner coils are active when the switch is activated.
Every pickup wire is grounded when the switch is activated except for red which is the start of the slug coil. Current flows from ground (the black wire is now grounded)
through the slug coil to red to the output. Correct?
