Tele Bridge Stack Coil Cut in Middle Position (3-pos switch)

[68Kustom]

Hi,

How do I ground out that stacked bridge bottom coil when in 3-way switch's middle position with single-coil neck? I want full series on bridge setting but top coil only on bridge+neck.

Cannot find a schematic for this. Isn't there a ground lug on the switch where the bottom coil's connected leads can attach to kill that coil when needed?



[GuitarDoc]

Depending on the specific pup, it can be done. But why would you want to do that?



[jeremy]

you should be able to do that on most stacks. what specific pup are we talking about? if its an old school stack, you may get a bit of an output boost when split



[68Kustom]

Depending on the specific pup, it can be done. But why would you want to do that?

A bit more output when in single coil mode with neck pickup. Also, maybe a bit more hum cancel with with neck pickup.



[68Kustom]

you should be able to do that on most stacks. what specific pup are we talking about? if its an old school stack, you may get a bit of an output boost when split

It's a Vintage Stack. Just want to know which lug on the Fender 3-way will kill that bottom coil.



[68Kustom]

you should be able to do that on most stacks. what specific pup are we talking about? if its an old school stack, you may get a bit of an output boost when split

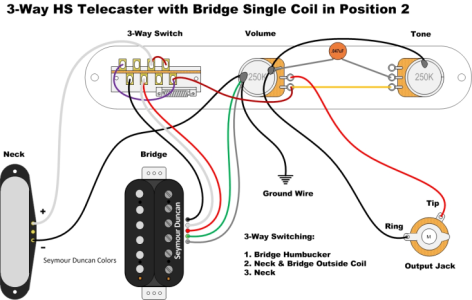

zz0.qqomzgq3dujzz



[jeremy]

nice!



[68Kustom]

nice!

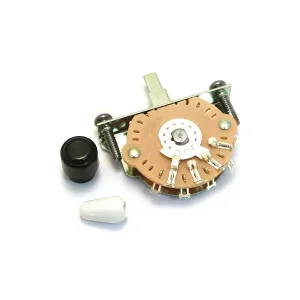

Does that look like two jumper wires at the switch? Also, Fender's switch doesn't quite look like the same. That one is top L - bottom R whereas Fender's 3-way is bot L - top R.

zz0.lzxwom5c9zz



[68Kustom]

EDIT: The diagram uses a CRL switch instead of Fender. Bet it's a licensing thing.
