Triple Shots with push pull volume and tone wiring diagram? confused...

[markinoz]

Hi,

I m building a PRS style guitar with one tone and one volume knob and a 3 way switch

I have push pull pots for both volume and tone..

I have PRails with triple shots and need a wiring diagram so I can incorporate the triple shots with the push pull pots

Has anyone got one?

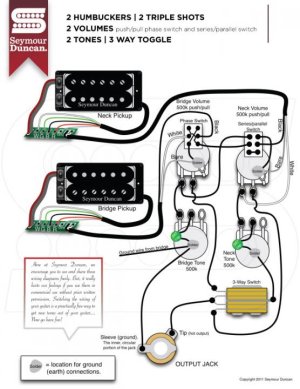

I have the diagrams below for Prtails two tones and two volumes but arent sure which parts of the wiring I would need to remove when using the Triple Shots

Any help would be appreciated as Im not super savvy with wiring push pull pots to get the most combinations out of it...



[Blille]

Triple Shots with push pull volume and tone wiring diagram? confused...

Welcome to the forum!

The triple shots give you all the pickup combinations already, the point is that they simplify the wiring. I would personally just ignore the push pulls and replace them for normal pots. Or at least wire them like normal pots.

The top wiring is all you need. Do you want the phase capability or you’re fine with just choosing the coils and series/parallel for each pickup?



[Jack_TriPpEr]

Re: Triple Shots with push pull volume and tone wiring diagram? confused...

Welcome to the forum!

The triple shots give you all the pickup combinations already, the point is that they simplify the wiring. I would personally just ignore the push pulls and replace them for normal pots. Or at least wire them like normal pots.

The top wiring is all you need. Do you want the phase capability or you’re fine with just choosing the coils and series/parallel for each pickup?

Besides out of phase functionality, there would be one other potential reason to have a push pull pot (given that the Triple Shots cover the coil spligting/series/parallel options per pickup): a master series/parallel functionality for how the two pickups are connected to each other.



[Blille]

Re: Triple Shots with push pull volume and tone wiring diagram? confused...

Besides out of phase functionality, there would be one other potential reason to have a push pull pot (given that the Triple Shots cover the coil spligting/series/parallel options per pickup): a master series/parallel functionality for how the two pickups are connected to each other.

Exactly. And given that the OP didn't ask for it, I say we simplify:



[markinoz]

Re: Triple Shots with push pull volume and tone wiring diagram? confused...

Exactly. And given that the OP didn't ask for it, I say we simplify:

Thanks for the prompt replies..

I concur.. I'll probably just ignore the push pull and wire in as normal pots...
