Re: Tune-o-matic on Ibanez RGA?
Someone else may have mentioned these things already but...

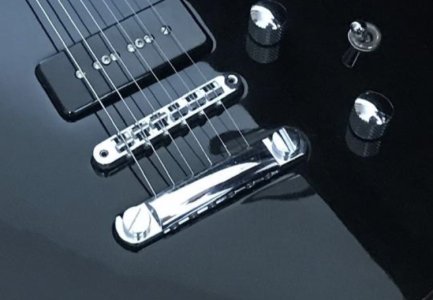

A TOM bridge has a different radius than your neck for one. For two, it will be higher than your stock bridge because guitars that use TOM -typically- have necks that have a back angle, like a Les Paul. I say typically because there are exceptions to that rule, like people slapping TOM bridges on mustangs and jag-stangs... but work must be done to make that happen as well. Also, you will have to fill the old holes, precisely measure your scale length, figure out the exact placement of the bridge, then measure out the exact placement for the post holes that you will have to drill, then set it up in a drill press using a brad point drill bit so the bit doesnt slide around, walk or bend while pressing the handle. Then you have to drill a hole in your body for the ground wire before you put the post in, otherwise your bridge and strings wont be grounded. If your measurements are off in any way, you drill the holes in even slightly the wrong spot, you basically have to dowel the holes and start over, which looks sloppy. The strings wont be in the right place on the neck, the intonation won't work or set properly, the strings will contact the wrong spot on the saddles causing buzzing and all sorts of things. You have an 80% chance of messing up your guitar by DIY'ing it, unless you have mad wood fab skills. Which you may! I don't know... butbgenerslly speaking I tend to shy people away from this kind of thing because I literally fix this type of "wouldn't it be cool if" things that people do to their guitars and get way in over their heads. 3 botched paint jobs, 6 botched wiring jobs, 2 botched feet jobs, countless botched setups all performed by the owners of the guitars and, 4 botched bridge installs all in the last 4 months and all of the bridge installs were performed by shops in town who have been repairing guitars for years.... for the record, I'm a certified installer for EverTune. They trust me to install their bridges, so I don't say these things lightly.
You may know some of these things... I don't know.... and you may very well be competent in your wood working skills... I don't know.... I don't mean to belittle you, you may be a luthier.... again I don't know. But at least take it as a warning for anyone reading this who aren't luthiers. You can really mess up your guitar and it will cost hundreds to fix it. If you ARE going to do this, at least test your skills on a 2x4 before drilling into your guitar..if you don't have a drill press... them dont even think about it!
if you cant make the bridge fit perfectly on a 2x4, then you shouldn't try it on your guitar. Lol. And if you cant figure out how to get the posts back out of the 2x4 without denting the wood, the same applies. Hahaha
Sorry..... i Really dont mean to sound negative or defeatist, but I see this kind of post and think "NOOOOOOOOOOO!!!!!!! DONT DOO IIITTTTT! PERFECTLY GOOD GUITAR!" At least pay someone who is qualified.... but again... a TOM probably won't work without filing down the saddles... otherwise your action will be about 6x higher than what it was stock.
