Wanted: 6 core 22awg shielded cable

GourmetSaint

GourmetSaint

New member

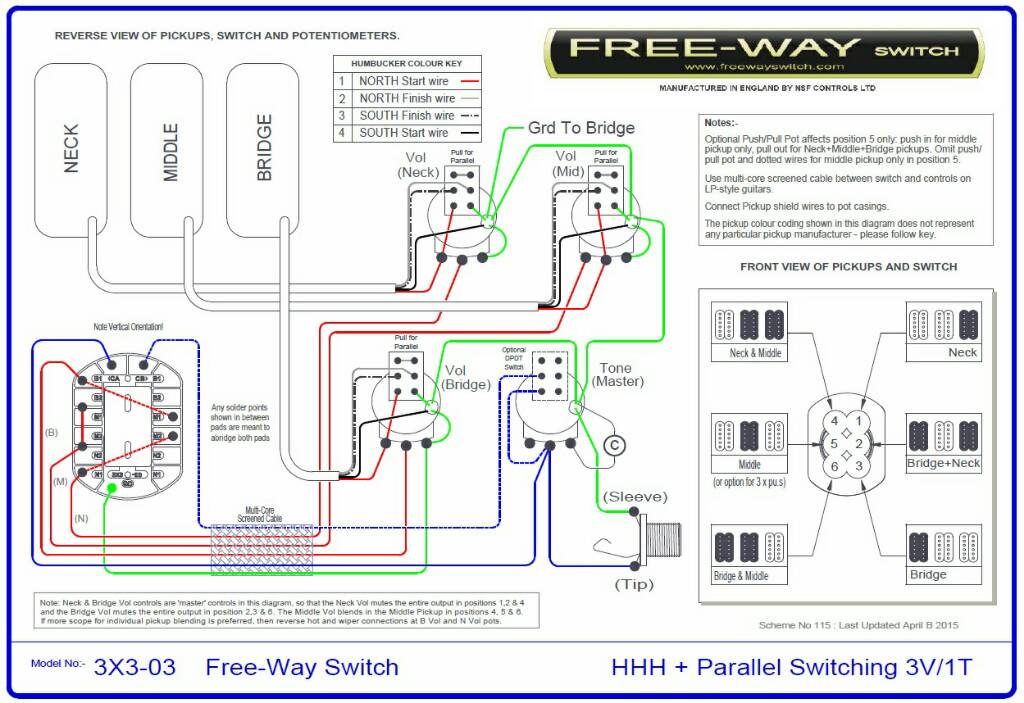

I need the above for the run from a 6 way Freeway switch to the pots cavity in my Epi Black Beauty 3. I can only find it in 500 and 1000' spools. The Belden part number is 5504FE. Can anyone help?

Sent from my Nexus 7 using Tapatalk

Re: Wanted: 6 core 22awg shielded cable


Re: Wanted: 6 core 22awg shielded cable

I've checked EVERY electronics store in Australia

Sent from my Nexus 7 using Tapatalk

Re: Wanted: 6 core 22awg shielded cable

Maybe try finding cat 3 3 pair? It's 24awg but that should be fine.

Re: Wanted: 6 core 22awg shielded cable

Six 22 gauge wires in a single cable? Good luck. It's hard to find outside the bulk orders you mentioned, and it will be a pain trying to fit all the wires in the cavities.

You could try shielded ethernet cables. It'll fit, and you can just pull out the two extra wires if you don't want them in there. 22 gauge wires will crowd that small LP switch cavity really fast, making the wiring messier/more difficult.

Re: Wanted: 6 core 22awg shielded cable

He wants a specific type, seemingly. The use of 2 x regular pickup 4 conductor is the best idea really, but seems to be ignored.

Re: Wanted: 6 core 22awg shielded cable

Not ignored. Shielded is necessary given the switch wires will run directly under the pups. Happy with 4 core shielded + 2 core shielded in 22awg but also difficult to source in Oz. These cables are built for alarm and control systems. The US PayPal link is promising. Seller has agreed to ship to Oz. Just waiting to finalise. Thanks for the help!!

Sent from my Nexus 7 using Tapatalk

Re: Wanted: 6 core 22awg shielded cable

I found the cable by the foot in the US and ordered 10' for delivery to friends there (wouldn't ship to Oz). My friends will mail on next week.
