What are the dimension for an SD P90 route?

['59]

I'm looking to route out some slots for a P90, what dimensions do I need? It's for a Tele, so I've heard that I need a depth of 3/4", but I don't know about the length, width, or corner radius.

These would not be for stacks, but for the Vintage, Hot, or Custom styled pickups.



[Mincer]

Re: What are the dimension for an SD P90 route?

You can see a detailed diagram here.



['59]

Re: What are the dimension for an SD P90 route?

I looked at that earlier, but it does not include the radius of the corners. How much clearance should I add to those measurements to ensure that the pickups can actually fit into the route? Those numbers are the pickups measurements, not the routes.



[Mincer]

Re: What are the dimension for an SD P90 route?

Well, you'd have to add about a mm or so to that...maybe a little more if the wire passes under the pickup. It isn't much.



['59]

Re: What are the dimension for an SD P90 route?

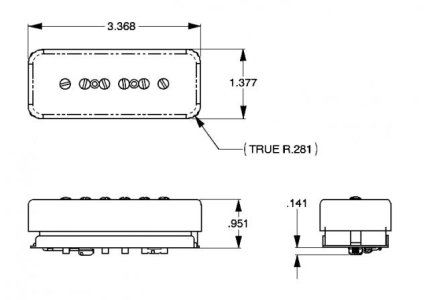

I know the stacked models are a bit taller than a normal P90, but are the covers the same dimensions in terms of length and width? The only SD diagram I could find with the dimensions of the cover included are for a stack.



[Mincer]

Re: What are the dimension for an SD P90 route?

I believe the covers are the same dimensions, but just deeper.



['59]

Re: What are the dimension for an SD P90 route?

So will I need to make the radius of the corners of the route a bigger or smaller number to fit the covers in?



[Mincer]

Re: What are the dimension for an SD P90 route?

I'd say the same or slightly bigger.
