Wiring a jbj sh-4 to bridge for a kc mustang correctly

[Guitar man dan]

Hi I’ve seen diagrams of the wiring for a humbucker in bridge for a KC mustang but it’s very basic! As humbucker has 5 wires. Anyone got any clear pictures please of the correct wiring! Thanks



[Mincer]

I am not familiar with what the switches do on a KC Mustang, so here are some guidelines:

So, a Fender is out of phase with SD pickups. The black and bare would go to ground (the back of the pot), red & white are connected and taped off, and green goes to the switch (where the hot wire for the stock humbucker goes.



[Guitar man dan]

Does anyone have proper diagram of kc mustang. I think all wires should go to the switch!!



[Mincer]

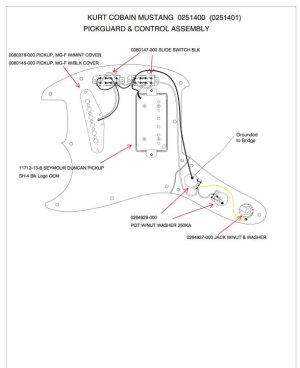

This is the best diagram I've found:


Looks like the humbucker here is 2 wires, right? Also, what are the switches actually doing?
